3D View orientation - can it be changed?

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
donnia.tabor-hanson
402 Aufrufe, 5 Antworten

3D View orientation - can it be changed?

So they have their project on True North but want the 3D view to come in by Project North not True North so they can take advantage of the View Cuge with Front, Right, etc and it look orthogonal.

Can this be done?


Thanks,

Donnia

#AutodeskExpertElite #CADMama





Thanks y'all,

Donnia Tabor
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature



CADMama and Revit Family Counselor
Twitter @DonniaTH

LinkedIn
5 ANTWORTEN 5
Nachricht 2 von 6
ToanDN
als Antwort auf: donnia.tabor-hanson


@donnia.tabor-hanson wrote:

So they have their project on True North but want the 3D view to come in by Project North not True North so they can take advantage of the View Cuge with Front, Right, etc and it look orthogonal.

Can this be done?



Thanks,

Donnia

#AutodeskExpertElite #CADMama






In a 3D top view, the red arrow should be Project North, letter N is True North.  Did you rotate project North?






Here is an example of my project








Nachricht 3 von 6
donnia.tabor-hanson
als Antwort auf: ToanDN

They can get the plan views oriented just fine. They want the 3D view to be squared up so that the "Front" of the view cube will take them square on one side and not on a corner which it shows now.



This is strictly about the 3D view.

Thanks y'all,

Donnia Tabor
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature



CADMama and Revit Family Counselor
Twitter @DonniaTH

LinkedIn
Nachricht 4 von 6
ToanDN
als Antwort auf: donnia.tabor-hanson

What I show you is a 3D top view.

Nachricht 5 von 6
donnia.tabor-hanson
als Antwort auf: ToanDN

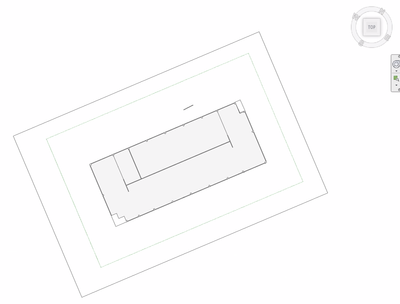

Yes, and the plan is skewed so that if you go to the cube "Front" view, you would see the prominent souther corner of the building and the two side off that corner. They would like to see perpendicularly to the one long side of the building instead in that cube "Front" view.
Thanks y'all,

Donnia Tabor
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature



CADMama and Revit Family Counselor
Twitter @DonniaTH

LinkedIn
Nachricht 6 von 6

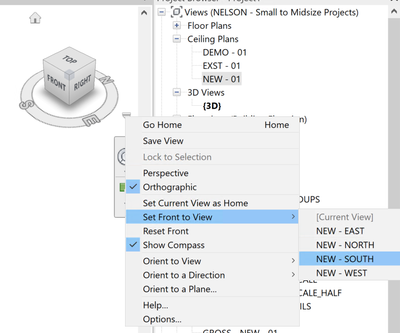

I found the answer. By having an elevation that is named, I can reorient the "Front" of the cube to be set to one of the elevations.
