I'm trying to place a family instance on the top face of a corbel.



For the majority of corbels along the model my code is able to place this family instance correctly. When the corbel is hosted on a beam the family I'm inserting gets the right hosting but is placed in the opposite side of the model, oriented along the X axis.

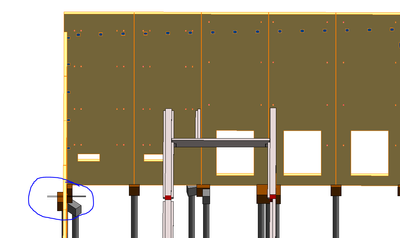

Here are the two target corbels, hosted on these beams:

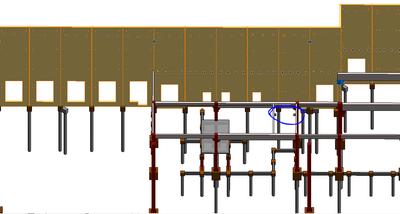

Here is where the family instances are being placed:






Note that the family instances are aligned with the point I am placing them:




I'm using the following method:



doc.Create.NewFamilyInstance(corbelTopFace.Reference, point, direction, familySymbol);



The top face parameter is correct. Also is the family origin point.



The direction is determined by the following piece of code:



PlanarFace face = corbelTopFace as PlanarFace;

XYZ direction = face.FaceNormal.CrossProduct(XYZ.BasisZ);
if (direction .IsZeroLength())
{
direction = face.FaceNormal.CrossProduct(XYZ.BasisY);
}



Note that, when I use "direction = face.FaceNormal.CrossProduct(XYZ.BasisY);" occurs this problem I'm reporting. BUT, if I change it to "face.FaceNormal.CrossProduct(XYZ.BasisX);" I catch this exception:






Just for comparison this is the desired behaviour:






Any ideas what could be wrong?
