Schedule borders

[chris.j.mckeown]

Hello,

Could someone please provide an example for applying borders to schedules, in particular header borders? I know this is possible to do as I have seen APPs do this.

I have been following this forum: ViewSchedule cell style override (border) - help needed but there has been no resolution yet. I have also follow the processes described in this post with no luck.

Regards

Chris

[jeremytammik]

Have you looked at the TableCellStyle BorderBottomLineStyle, BorderLeftLineStyle, etc. properties?

Cheers

Jeremy

[chris.j.mckeown]

Hi Jeremy,

Thank you for you reply.

Please see the code I am using below. I am sure it is a order thing. I have tried multiple different orders but with no luck.

#region Namespaces

using System;

using System.Collections.Generic;

using System.Linq;

using Autodesk.Revit.ApplicationServices;

using Autodesk.Revit.Attributes;

using Autodesk.Revit.DB;

using Autodesk.Revit.UI;

using System.Windows.Forms;

#endregion

[Transaction(TransactionMode.Manual)]

[Regeneration(RegenerationOption.Manual)]

class tableHeaderTest : IExternalCommand

{

public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)

{

try

{

UIApplication uiapp = commandData.Application;

UIDocument uidoc = uiapp.ActiveUIDocument;

Autodesk.Revit.ApplicationServices.Application app = uiapp.Application;

Document doc = commandData.Application.ActiveUIDocument.Document;

if (doc.IsFamilyDocument)

{

Helper.MessageInfo("Action not available in the Family environment.");

}

else

{

_ImportCategory(commandData, doc);

}

return Autodesk.Revit.UI.Result.Succeeded;

}

catch (Exception e)

{

message = e.Message;

return Autodesk.Revit.UI.Result.Failed;

}

}

private void _ImportCategory(ExternalCommandData commandData, Document doc)

{

Transaction trans = new Transaction(doc, "Create schedule");

trans.Start();

ViewSchedule schedule = null;

try

{

FilteredElementCollector collector = new FilteredElementCollector(doc).OfClass(typeof(GraphicsStyle));

GraphicsStyle styleLines = collector.Cast<GraphicsStyle>().FirstOrDefault<GraphicsStyle>(gs => gs.Name.Equals("<Hidden>"));

schedule = ViewSchedule.CreateSchedule(doc, new ElementId(BuiltInCategory.OST_GenericModel));

foreach (ElementId id in ViewSchedule.GetAvailableParameters(doc, new ElementId(BuiltInCategory.OST_GenericModel)))

{

if (new ElementId(BuiltInParameter.DOOR_NUMBER) == id)

schedule.Definition.AddField(new SchedulableField(ScheduleFieldType.Instance, id));

}

ScheduleFilter sf = new ScheduleFilter(schedule.Definition.GetField(0).FieldId, ScheduleFilterType.Equal, "");

schedule.Definition.AddFilter(sf);

sf = new ScheduleFilter(schedule.Definition.GetField(0).FieldId, ScheduleFilterType.NotEqual, "");

schedule.Definition.AddFilter(sf);

TableSectionData header = schedule.GetTableData().GetSectionData(SectionType.Header);

int rows = 10;

int columns = 10;

for (int i = 0; i < rows - 1; i++)

{

header.InsertRow(1);

}

for (int i = 0; i < columns - 1; i++)

{

header.InsertColumn(1);

}

for (int col = 0; col < header.NumberOfColumns; col++)

{

for (int row = 0; row < header.NumberOfRows; row++)

{

try

{

header.SetCellText(row, col, "text");

TableCellStyle tcs = new TableCellStyle();

TableCellStyleOverrideOptions options = new TableCellStyleOverrideOptions();

options.FontSize = true;

options.BackgroundColor = true;

options.Bold = true;

options.BorderLineStyle = true;

options.BorderBottomLineStyle = true;

options.BorderLeftLineStyle = true;

options.BorderRightLineStyle = true;

options.BorderTopLineStyle = true;

options.Font = true;

options.FontColor = true;

options.HorizontalAlignment = true;

options.Italics = true;

options.TextOrientation = true;

options.Underline = true;

options.VerticalAlignment = true;

tcs.SetCellStyleOverrideOptions(options);

tcs.BackgroundColor = new Autodesk.Revit.DB.Color(255, 244, 10);

tcs.BorderBottomLineStyle = styleLines.Id;

tcs.BorderLeftLineStyle = styleLines.Id;

tcs.BorderRightLineStyle = styleLines.Id;

tcs.BorderTopLineStyle = styleLines.Id;

　

tcs.FontHorizontalAlignment = HorizontalAlignmentStyle.Right;

tcs.FontVerticalAlignment = VerticalAlignmentStyle.Top;

tcs.IsFontBold = true;

tcs.IsFontItalic = true;

tcs.TextColor = new Autodesk.Revit.DB.Color(0, 0, 0);

tcs.TextOrientation = 90 * 10;

tcs.TextSize = 10;

header.SetCellStyle(row, col, tcs);

}

catch (Exception ex)

{

MessageBox.Show(ex.ToString ());

}

}

}

trans.Commit();

MessageBox.Show("Complete.");

}

catch (Exception ex)

{

MessageBox.Show(ex.ToString());

}

}

}

Regards

Chris

[jeremytammik]

Dear Chris,

Can you achieve what you want manually in the user interface?

If not, hopes are slim that it can be done programatically.

If you can, then please submit a complete minimal reproducible case so we can test with one click and hopefully analyse and fix the API issue:

http://thebuildingcoder.typepad.com/blog/about-the-author.html#1b

Thank you!

Cheers,

Jeremy

[chris.j.mckeown]

Hi Jeremy,

Yes this can be done in the user interface.

Please see attached a a 2015 Revit file with 2 schedules and a sheet.

The schedule called "Created in Revit" is the schedule I am aiming for with Hidden lines as the borders.

The schedule called "Generic Model Schedule" is created via the code below. When I try apply the hidden lines as the line style they end up greyed out in when editing the schedule, as if the Hidden line type is not recognised.

#region Namespaces

using System;

using System.Collections.Generic;

using System.Linq;

using Autodesk.Revit.ApplicationServices;

using Autodesk.Revit.Attributes;

using Autodesk.Revit.DB;

using Autodesk.Revit.UI;

using System.Windows.Forms;

#endregion

[Transaction(TransactionMode.Manual)]

[Regeneration(RegenerationOption.Manual)]

class tableHeaderTest : IExternalCommand

{

public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)

{

UIApplication uiapp = commandData.Application;

UIDocument uidoc = uiapp.ActiveUIDocument;

Autodesk.Revit.ApplicationServices.Application app = uiapp.Application;

Document doc = commandData.Application.ActiveUIDocument.Document;

scheduleHeader(commandData, doc);

return Autodesk.Revit.UI.Result.Succeeded;

}

private void scheduleHeader(ExternalCommandData commandData, Document doc)

{

Transaction trans = new Transaction(doc, "Create schedule");

trans.Start();

ViewSchedule schedule = null;

try

{

FilteredElementCollector collector = new FilteredElementCollector(doc).OfClass(typeof(GraphicsStyle));

GraphicsStyle styleLines = collector.Cast<GraphicsStyle>().FirstOrDefault<GraphicsStyle>(gs => gs.Name.Equals("<Hidden>"));

schedule = ViewSchedule.CreateSchedule(doc, new ElementId(BuiltInCategory.OST_GenericModel));

foreach (ElementId id in ViewSchedule.GetAvailableParameters(doc, new ElementId(BuiltInCategory.OST_GenericModel)))

{

if (new ElementId(BuiltInParameter.DOOR_NUMBER) == id)

schedule.Definition.AddField(new SchedulableField(ScheduleFieldType.Instance, id));

}

ScheduleFilter sf = new ScheduleFilter(schedule.Definition.GetField(0).FieldId, ScheduleFilterType.Equal, "");

schedule.Definition.AddFilter(sf);

sf = new ScheduleFilter(schedule.Definition.GetField(0).FieldId, ScheduleFilterType.NotEqual, "");

schedule.Definition.AddFilter(sf);

TableSectionData header = schedule.GetTableData().GetSectionData(SectionType.Header);

ScheduleField field = schedule.Definition.GetField(0);

field.ColumnHeading = "";

int rows = 10;

int columns = 10;

for (int i = 0; i < rows - 1; i++)

{

header.InsertRow(1);

}

for (int i = 0; i < columns - 1; i++)

{

header.InsertColumn(1);

}

double totalWidth = 0;

for (int col = 0; col < header.NumberOfColumns; col++)

{

totalWidth = totalWidth + (20 / 304.8);

header.SetColumnWidth(col, 20 / 304.8);

}

field.GridColumnWidth = totalWidth;

for (int col = 0; col < header.NumberOfColumns; col++)

{

for (int row = 0; row < header.NumberOfRows; row++)

{

try

{

header.SetCellText(row, col, "text");

TableCellStyle tcs = new TableCellStyle();

TableCellStyleOverrideOptions options = new TableCellStyleOverrideOptions();

options.FontSize = true;

options.BackgroundColor = true;

options.Bold = true;

options.BorderLineStyle = true;

options.BorderBottomLineStyle = true;

options.BorderLeftLineStyle = true;

options.BorderRightLineStyle = true;

options.BorderTopLineStyle = true;

options.Font = true;

options.FontColor = true;

options.HorizontalAlignment = true;

options.Italics = true;

options.TextOrientation = true;

options.Underline = true;

options.VerticalAlignment = true;

tcs.SetCellStyleOverrideOptions(options);

tcs.BackgroundColor = new Autodesk.Revit.DB.Color(255, 244, 10);

tcs.BorderBottomLineStyle = styleLines.Id;

tcs.BorderLeftLineStyle = styleLines.Id;

tcs.BorderRightLineStyle = styleLines.Id;

tcs.BorderTopLineStyle = styleLines.Id;

　

tcs.FontHorizontalAlignment = HorizontalAlignmentStyle.Right;

tcs.FontVerticalAlignment = VerticalAlignmentStyle.Top;

tcs.IsFontBold = true;

tcs.IsFontItalic = true;

tcs.TextColor = new Autodesk.Revit.DB.Color(0, 0, 0);

tcs.TextOrientation = 0 * 10;

tcs.TextSize = 10;

header.SetCellStyle(row, col, tcs);

}

catch (Exception ex)

{

MessageBox.Show(ex.ToString());

}

}

}

trans.Commit();

MessageBox.Show("Complete.");

}

catch (Exception ex)

{

MessageBox.Show(ex.ToString());

}

}

}

　

Regards

Chris

　

[chris.j.mckeown]

Hi Jeremy,

Any luck with the examples I provided?

Regards

Chris

[jeremytammik]

Dear Chris,

Thank you for your sample material and update.

I cannot really say... I was hoping someone else might jump in with more experience in this area.

I am passing it on to the development team now to hear what they have to say.

Thank you for your patience.

Cheers,

Jeremy

[chris.j.mckeown · Accepted solution]

Dear team,

I have resolved this issue.

instead of:

tcs.BorderBottomLineStyle = styleLines.Id;

I needed:

tcs.BorderBottomLineStyle = styleLines.GraphicsStyleCategory.Id;

Regards

[jeremytammik]

Dear Chris,

Thank you very much for letting us know!

Kudos!

Cheers,

Jeremy

[Anonymous]

Hello,

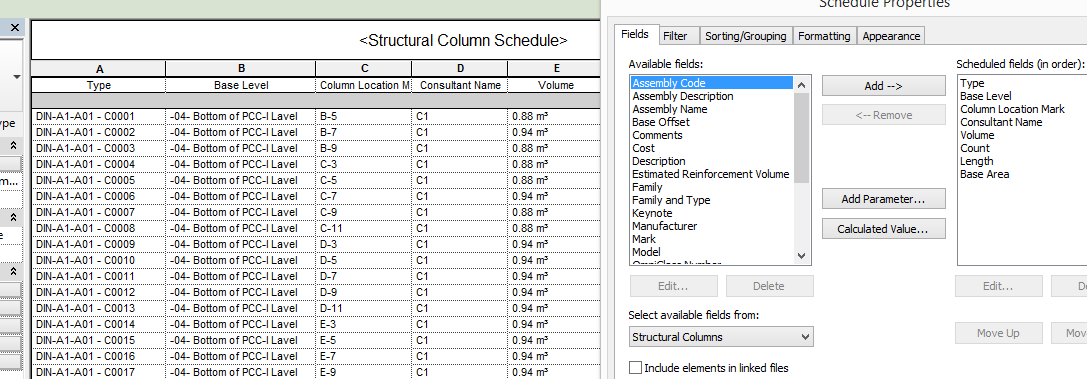

1- While creating a Beam Schedule I want to add a "Beam Location Mark" and Slab location mark in terms of grid Similar to Column Schedule.

I want to locate Beam in form of  B1-E1 0r B1-B5. Similarly for Slab Location Mark in form of B1-D5. Can anyone help me out?

2- I also want cross Sectional Dimensions (length x width) field in Beam and Column Schedule. Please Help me out.

Thanks, Amit

[peterbim]

Hello! That is actual even after years) Please tell me how can I use your code? Need to create a macro in Revit? Or some other way

[jeremy_tammik]

Chris' code above is from a Revit add-in. It can easily be converted to work in a macro, and also migrated to Python for integration in a Dynamo node.
