Convert the DWG to PNG image using Plot API.

[aniket_pachore]

I am using the AutoCAD Plot API to export a user-selected window area from model space to a PNG file. However, I'm encountering the following issue:

1. When I select a window area (as shown in Image1), I want that exact same area to be exported as a PNG.

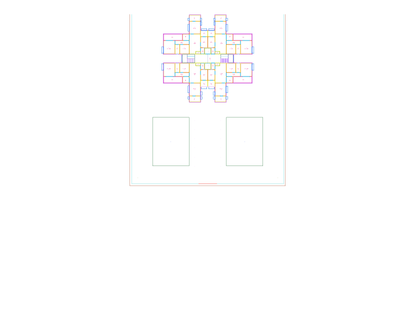

But the output shows a different area (as seen in Output_Image).

I have tried several approaches to adjust the scale, such as using StdScaleType.ScaleToFit and SetCustomPrintScale, but none of them have worked for me.

Can anyone help me resolve this issue?

Attached Below code for your Reference

[CommandMethod("DWGTOIMG")]
public void ExportDWGToImage()
{
    Document doc = Application.DocumentManager.MdiActiveDocument;
    Editor ed = doc.Editor;
    Database db = doc.Database;

    // Prompt for output file
    PromptSaveFileOptions saveOpts = new PromptSaveFileOptions("\nSelect output PNG file location:");
    saveOpts.Filter = "PNG Files (*.png)|*.png";
    PromptFileNameResult saveResult = ed.GetFileNameForSave(saveOpts);
    if (saveResult.Status != PromptStatus.OK) return;
    string outputPath = saveResult.StringResult;

    using (Transaction tr = db.TransactionManager.StartTransaction())
    {
        LayoutManager layoutMgr = LayoutManager.Current;
        ObjectId currentLayoutId = layoutMgr.GetLayoutId(layoutMgr.CurrentLayout);
        Layout layout = tr.GetObject(currentLayoutId, OpenMode.ForRead) as Layout;

        if (!layout.ModelType)
        {
            ed.WriteMessage("\nPlease switch to Model space (Model tab) first.");
            return;
        }

        PlotSettings plotSettings = new PlotSettings(layout.ModelType);
        plotSettings.CopyFrom(layout);

        PlotSettingsValidator psv = PlotSettingsValidator.Current;

        // Select window area
        PromptPointResult ppr1 = ed.GetPoint("\nSelect first corner of window: ");
        if (ppr1.Status != PromptStatus.OK) return;

        PromptCornerOptions pco = new PromptCornerOptions("\nSelect opposite corner: ", ppr1.Value);
        PromptPointResult ppr2 = ed.GetCorner(pco);
        if (ppr2.Status != PromptStatus.OK) return;

        Point2d lowerLeft = new Point2d(
        Math.Min(ppr1.Value.X, ppr2.Value.X),
        Math.Min(ppr1.Value.Y, ppr2.Value.Y)
        );
        Point2d upperRight = new Point2d(
        Math.Max(ppr1.Value.X, ppr2.Value.X),
        Math.Max(ppr1.Value.Y, ppr2.Value.Y)
        );
        //Extents2d windowArea = new Extents2d(ConvertMmToInches(lowerLeft), ConvertMmToInches(upperRight));
        Extents2d windowArea = new Extents2d(lowerLeft, upperRight);

        // Plot window area
        psv.SetPlotWindowArea(plotSettings, windowArea);
        psv.SetPlotType(plotSettings, Autodesk.AutoCAD.DatabaseServices.PlotType.Window);

        // Set plot configuration to PNG
        string deviceName = "PublishToWeb PNG.pc3";
        string mediaName = "Sun_Hi-Res_(1600.00_x_1280.00_Pixels)";
        psv.SetPlotConfigurationName(plotSettings, deviceName, null);
        //psv.RefreshLists(plotSettings);

        // Set paper size
        var mediaList = psv.GetCanonicalMediaNameList(plotSettings);
        if (mediaList.Contains(mediaName))
        {
            psv.SetCanonicalMediaName(plotSettings, mediaName);
        }
        else
        {
            ed.WriteMessage("\nMedia size not found. Using default.");
        }

        // Set standard scale to "Scale to Fit"
        psv.SetUseStandardScale(plotSettings, true);
        psv.SetStdScaleType(plotSettings, StdScaleType.ScaleToFit);
        //psv.SetUseStandardScale(plotSettings, false);
        //psv.SetCustomPrintScale(plotSettings, new CustomScale(1, 25.4));

        // Center the plot
        psv.SetPlotCentered(plotSettings, true);

        // Set rotation (optional, based on your layout)
        psv.SetPlotRotation(plotSettings, PlotRotation.Degrees000);

        psv.RefreshLists(plotSettings);

        // PlotInfo setup
        PlotInfo plotInfo = new PlotInfo();
        plotInfo.Layout = currentLayoutId;
        plotInfo.OverrideSettings = plotSettings;

        PlotInfoValidator piv = new PlotInfoValidator();
        piv.MediaMatchingPolicy = MatchingPolicy.MatchEnabled;
        piv.Validate(plotInfo);

        // Begin plotting
        if (PlotFactory.ProcessPlotState == ProcessPlotState.NotPlotting)
        {
            using (PlotEngine pe = PlotFactory.CreatePublishEngine())
            {
                using (PlotProgressDialog ppd = new PlotProgressDialog(false, 1, true))
                {
                    ppd.set_PlotMsgString(PlotMessageIndex.DialogTitle, "Exporting DWG to PNG");
                    ppd.set_PlotMsgString(PlotMessageIndex.CancelJobButtonMessage, "Cancel Job");
                    ppd.set_PlotMsgString(PlotMessageIndex.SheetProgressCaption, "Progress");
                    ppd.LowerPlotProgressRange = 0;
                    ppd.UpperPlotProgressRange = 100;
                    ppd.PlotProgressPos = 0;

                    ppd.OnBeginPlot();
                    ppd.IsVisible = true;

                    pe.BeginPlot(ppd, null);

                    if (File.Exists(outputPath))
                        File.Delete(outputPath);

                    pe.BeginDocument(plotInfo, doc.Name, null, 1, true, outputPath);

                    PlotPageInfo ppi = new PlotPageInfo();
                    pe.BeginPage(ppi, plotInfo, true, null);
                    pe.BeginGenerateGraphics(null);
                    pe.EndGenerateGraphics(null);
                    pe.EndPage(null);
                    pe.EndDocument(null);
                    pe.EndPlot(null);

                    ppd.OnEndPlot();
                    ed.WriteMessage("\nExport completed! PNG saved at: {0}", outputPath);
                }
            }
        }

        tr.Commit();
    }
}

[pendean · Accepted solution]

Why not use an image capture tool instead? Windows alone comes with at least one, most of us prefer the free and not so free dozens of others that have been around for decades @aniket_pachore

[aniket_pachore]

You're absolutely right. However, I also need to process the data after capturing a specific area. For example, if I capture the ground floor from a DWG file, I want to calculate the floor area of each room, as well as the area and count of doors and windows. That's why I'm planning to using the Plot API.
Thank you for suggesting the image capture tool; it’s a valuable option to consider.

[ActivistInvestor]

You are going to calculate floor areas and count doors and windows off of a .PNG image?

[aniket_pachore]

No, not from the PNG image
But the entities from the area of window selection.

[aniket_pachore]

"I am unable to map the plot page and model space coordinates using the code below.
I would really appreciate it if anyone could test it."
