Gravity effect on filling

[Sanjay_paul]

Is there any effect of gravity on filling in moldflow insight?

[bernor_mf]

Hi,

When molding thin walled parts, viscosity is usually low and flow of polymer is fast into the mold cavity.
Therefore, the effect of gravity on the molding process is not a significant factor in the molding process.

But gravity can be considered in a 3D tetra mesh.

Gravity direction

Specifying the gravity direction

Hope this helps.

Regards,

Berndt

[prabu_Karunakaran]

For thicker parts you can see the effect visually.

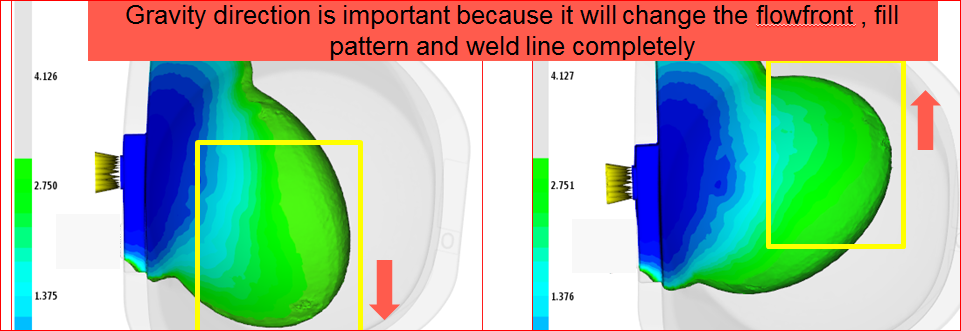

Here you can see the gravity effect, Same part with the same gate location with opposite garvity direction

[mppkumar]

Hi @prabu_Karunakaran

Good study on gravity effect

[Sanjay_paul]

Nice presentation of Gravity Effect. Thanks  Prabu!
