With the examples I built the following:

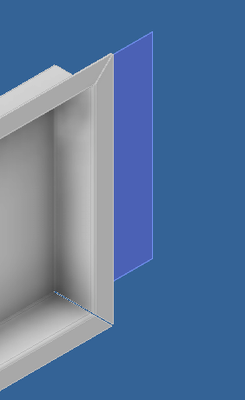

I'm able to make a solid feature that I can angle much like a flange, and be able to measure.
Public Sub Main()
Dim partDoc As PartDocument = ThisDoc.Document
Dim oCompDef As PartComponentDefinition = partDoc.ComponentDefinition
Dim transBRep As TransientBRep = ThisApplication.TransientBRep
Dim transGeom As TransientGeometry = ThisApplication.TransientGeometry
Dim edge As Edge = ThisApplication.CommandManager.Pick(SelectionFilterEnum.kPartEdgeFilter, "Select an edge.")
Dim egdeLength As Double = ThisApplication.MeasureTools.GetMinimumDistance(edge.StartVertex, edge.StopVertex)
Dim line As LineSegment = edge.Geometry
Dim startPoint = line.StartPoint
Dim translationVector = transGeom.CreateVector(startPoint.X, startPoint.Y, startPoint.Z)
Dim vector1 = transGeom.CreateVector(0, 0, 1)
Dim vector2 = line.Direction.AsVector()
Dim matrix As Matrix = transGeom.CreateMatrix()
matrix.SetToRotateTo(vector1, vector2)
matrix.SetTranslation(translationVector)
Dim boxMinPoint As Point = transGeom.CreatePoint(0, 0, 0)
Dim boxMaxPoint As Point = transGeom.CreatePoint(0.3, -10, egdeLength)
Dim box As Box = transGeom.CreateBox()
box.Extend(boxMinPoint)
box.Extend(boxMaxPoint)
Dim oBody As SurfaceBody = transBRep.CreateSolidBlock(box)
transBRep.Transform(oBody, matrix)
matrix.SetToRotation(90*PI/180, vector2, line.StartPoint)
transBRep.Transform(oBody, matrix)
partDoc.ComponentDefinition.SetEndOfPartToTopOrBottom(True)
Dim oBaseFeature As NonParametricBaseFeature = oCompDef.Features.NonParametricBaseFeatures.Add(oBody)
partDoc.ComponentDefinition.SetEndOfPartToTopOrBottom(False)
End Sub
This is kinda what I wanted, but not sure if it is what I need.
Just need a 'face' in the position of the flange, before a flange is created, to measure it with workplane XY
I can measure the difference in angle in the direction of the flange.
If inventor measures an angle in the width direction of the flange, I can ignore it
If the angle of the flange is in +30deg/-30deg range of workplane XY, I should align the flange to be created with the workplane XY
