iLogic - Lofting 2 Profiles (2D Sketches) with 1 Centerline (3D Sketch)

[jason_snyder]

Hi All,

I'm looking for code to simply loft 2 profiles along a centreline. I have multiple to do and looking to speed the process.

I assumed I need to define my profiles, centreline then define a loft. Hence, the code below:

Dim oDoc As PartDocument
oDoc = ThisApplication.ActiveDocument

    Dim oP1 As Profile, oP2 As Profile
    oP1 = oDoc.ComponentDefinition.Sketches("Section1").Profiles.AddForSolid
    oP2 = oDoc.ComponentDefinition.Sketches("Section2").Profiles.AddForSolid


            Dim oP3 As LoftDefinition.Centerline

             oP3 = oDoc.ComponentDefinition.Sketches("Path1").

    Dim oCol As ObjectCollection
    oCol = ThisApplication.TransientObjects.CreateObjectCollection
    oCol.Add oP1
    oCol.Add oP2

       Dim oLoftDef As LoftDefinition
       oLoftDef = oDoc.ComponentDefinition.Features.LoftFeatures.CreateLoftDefinition(oCol, kJoinOperation)

       Dim oLoftF As LoftFeature
       oLoftF = oDoc.ComponentDefinition.Features.LoftFeatures.Add(oLoftDef)

However, this doesn't work and errors out. How do it get the centreline to be added in?

[Jon.Balgley]

I am also having a problem specifying the centerline.  I am still investigating that.  The following will create a loft-feature without a centerline.

SyntaxEditor Code Snippet

Dim oDoc As PartDocument
oDoc = ThisDoc.Document

Dim pcd = oDoc.ComponentDefinition

Dim oP1 As Profile, oP2 As Profile
oP1 = pcd.Sketches("Section1").Profiles.AddForSolid
oP2 = pcd.Sketches("Section2").Profiles.AddForSolid

Dim oCol As ObjectCollection
oCol = ThisApplication.TransientObjects.CreateObjectCollection
oCol.Add(oP1)
oCol.Add(oP2)

Dim oLoftDef As LoftDefinition
oLoftDef = pcd.Features.LoftFeatures.CreateLoftDefinition(oCol, kJoinOperation)

Dim oLoftF As LoftFeature
oLoftF = pcd.Features.LoftFeatures.Add(oLoftDef)




[jason_snyder]

Hi Jon,

Thanks, I have been doing some further reading and I think maybe need to use a BoundaryCondition.

However, I'm struggling on how the syntax should read.

[Jon.Balgley]

Can you construct the loft you want with the UI?  What options are you specifying?

The API documentation on the boundary conditions is pretty sparse!

[jason_snyder]

No, yeah I thought a boundarypath perhaps? A EdgeCollection of the 3D sketch?

I found code for when the path is a 2D sketch which was simple. Defined as sketch. ("Path").proiles.addforsurface then defined as a centerline. Worked. But doesn't work with 3D Sketches.

[chandra.shekar.g]

Hi @jason_snyder,

Try the following VBA code to create loft feature. The loft is created for 2 profiles (2D sketch) with 1 Centerline (3D sketch).

This code is tested with attached sample part file in Inventor 2018.

Sub CenterLineLoftCreation()

	Dim oDoc As PartDocument
	Set oDoc = ThisApplication.ActiveDocument

	Dim oComp As PartComponentDefinition
	Set oComp = oDoc.ComponentDefinition

	Dim oSections As ObjectCollection
	Set oSections = ThisApplication.TransientObjects.CreateObjectCollection

	oSections.Add oComp.Sketches(1).Profiles.AddForSolid
	oSections.Add oComp.Sketches(2).Profiles.AddForSolid

	Dim oDef As LoftDefinition
	Set oDef = oComp.Features.LoftFeatures.CreateLoftDefinition(oSections, kJoinOperation)

	oDef.Centerline = oComp.Sketches3D.Item(1).Profiles3D.AddOpen

	Dim oLoft As LoftFeature
	Set oLoft = oComp.Features.LoftFeatures.Add(oDef)

End Sub

Please feel free to contact if there is any queries.

If solves problem, click on "Accept as solution" / give a "Kudo".

Thanks and regards,

[jason_snyder]

Hi Chandra,

Thanks for this, works well.

However, not so well inside a "Simplified Part", where my sections and control line are derived from a assembly.

I guess I'd need to change the code to look inside the derived assembly and not the "Simplified Part", Any thoughts for what that code is?

Cheers

[chandra.shekar.g]

Hi @jason_snyder,

Can you please provide part which is using derived assembly?

Please make sure that files are non confidential.

Thanks and regards,

[jason_snyder]

Hi Chandra,

Please find attached zip file.

Very basic geometry. However, the concept is key.

Lofted_Part_1 is where I want to select my sections and control/centreline and loft.

Skel_assy_1 contains my assembled sections and control/centreline placed in correct locations.

Let me know how you go.

Cheers,

Jason Snyder

[chandra.shekar.g]

Hi @jason_snyder,

Downloaded the attachment and opened part called "LOFTED_PART_1.ipt"

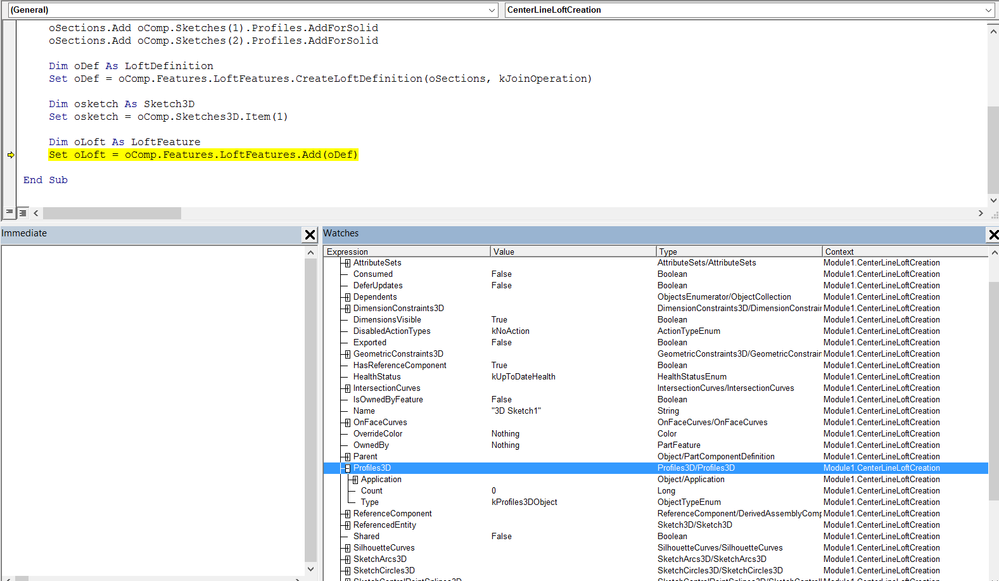

For some reason, sketch3D which is derived from assembly is not having "Profile3D" as shown in below image.

So, unable to create loft feature using 2dsketch and 3d sketch. which are derived from assembly.

Thanks and regards,

[jason_snyder]

Hi Chandra,

Thanks, this makes me think I need to make reference to the derived sketches?

Dim oDerPart As PartDocument
    oDerPart = ThisApplication.ActiveDocument

    Dim oDerPartComp As DerivedPartComponent

    oDerPartComp = oDerPart.ComponentDefinition.ReferenceComponents.DerivedPartComponents("SKEL_ASSY_1.iam").Sketches("Sketch1").Profiles.AddForSolid
    oDerPartComp = oDerPart.ComponentDefinition.ReferenceComponents.DerivedPartComponents("SKEL_ASSY_1.iam").Sketches("Sketch2").Profiles.AddForSolid

[chandra.shekar.g · Accepted solution]

Hi @jason_snyder,

No changes required for VBA code. Again, Sketch3D of centerline looks complex for Inventor API and unable to create profile3D for it.

Sub CenterLineLoftCreation()

    Dim oDoc As PartDocument
    Set oDoc = ThisApplication.ActiveDocument

    Dim oComp As PartComponentDefinition
    Set oComp = oDoc.ComponentDefinition

    Dim oSections As ObjectCollection
    Set oSections = ThisApplication.TransientObjects.CreateObjectCollection

    oSections.Add oComp.Sketches(1).Profiles.AddForSolid
    oSections.Add oComp.Sketches(2).Profiles.AddForSolid

    Dim oDef As LoftDefinition
    Set oDef = oComp.Features.LoftFeatures.CreateLoftDefinition(oSections, kJoinOperation)

    oDef.Centerline = oComp.Sketches3D.Item(1).Profiles3D.AddOpen

    Dim oLoft As LoftFeature
    Set oLoft = oComp.Features.LoftFeatures.Add(oDef)

End Sub

 I modified sketch3D something look like as follow.

The same code is working fine and able to create loft feature. Tested sample attached with this post.

Please feel free to contact if there is any queries.

If solves problem, click on "Accept as solution" / give a "Kudo".

Thanks and regards,

[jason_snyder]

Hi Chandra,

Cool, no worries. My geometry maybe too complex for "Simplified Parts".

Good to know it does work on less complex 3D Sketches.

Thanks again,

Cheers,

Jason Snyder

[Anonymous]

Hello,

I have multiple 3d lines and 2d sketches. Is it possible to update this code so it can generate all the lofts?

[Anonymous]

Actually I managed to do that. Still, I have another problem!

What I want to do is I create a geometry, then I export the step file of this geometry and then I import this step file and I use your macro to create the sweep.

Unfortunately, if it works well in the original part, it does not in the imported step file. It might because all the sketches are imported as 3D sketches, I believe. Then what would be the right code ?

Thank you for your help!
