Create constraint on two faces

[Anonymous]

Hello everyone.

I'm new to Inventor API VBA.

I am trying to create two constraints on two details in an assembly.
I created a constraint on cylindrical faces.

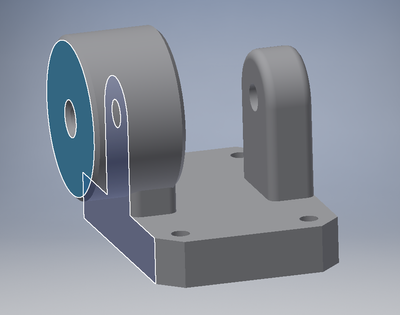

Similarly, I created a constraint on two flat faces, but the wrong flat face is selected on the first detail.
I need to select a flat face inside the cut of the first part, but I do not understand how to do this.
Please help.
What am I doing wrong?

My code:

Imports System.Runtime.InteropServices

Public Class Form1
    Dim oApp As Inventor.Application = GetInventorApplication()

    ''FUNCTION OF GETTING A REFERENCE TO Inventor
    Function GetInventorApplication() As Inventor.Application
        Dim InvApp As Inventor.Application
        Try
            InvApp = CType(Marshal.GetActiveObject("Inventor.Application"), Inventor.Application)
        Catch ex As Exception
            Dim InvType As Type = Type.GetTypeFromProgID("Inventor.Application")
            InvApp = CType(Activator.CreateInstance(InvType), Inventor.Application)
            InvApp.Visible = True
        End Try
        Return InvApp
    End Function

    Private Sub Create_Assembly(sender As Object, e As EventArgs) Handles Button1.Click
        Call Create_Assembly_Procedure()
    End Sub

    Sub Create_Assembly_Procedure()
        ''CREATION OF ASSEMBLY DOCUMENT
        Dim oAsDoc As Inventor.AssemblyDocument = oApp.Documents.Add(Inventor.DocumentTypeEnum.kAssemblyDocumentObject, oApp.GetTemplateFile(Inventor.DocumentTypeEnum.kAssemblyDocumentObject))

        ''OBTAINING OBJECT COMPONENTS
        Dim oAsCompDef As Inventor.AssemblyComponentDefinition = oApp.ActiveDocument.ComponentDefinition

        ''INDICATION OF THE MATRIX
        Dim oPositionMatrix As Inventor.Matrix = oApp.TransientGeometry.CreateMatrix

        ''CREATING A PARTS INLET
        Dim sFileNameDetail_1 As String = "D:Details\Detail_1.ipt"
        Dim sFileNameDetail_2 As String = "D:Details\Detail_2.ipt"
        Dim sFileNameDetail_3 As String = "D:Details\Detail_3.ipt"
        ''PARAMETERS OF PARTS POSITION
        Dim VectorDetail_2 As Inventor.Vector = oApp.TransientGeometry.CreateVector(3, 3, -5)
        Dim VectorDetail_3 As Inventor.Vector = oApp.TransientGeometry.CreateVector(3, 3, 10)
        ''PARTS INPUT
        Dim Detail_1 As Inventor.ComponentOccurrence = oAsDoc.ComponentDefinition.Occurrences.Add(sFileNameDetail_1, oPositionMatrix)
        oPositionMatrix.SetTranslation(VectorDetail_2)
        Dim Detail_2 As Inventor.ComponentOccurrence = oAsDoc.ComponentDefinition.Occurrences.Add(sFileNameDetail_2, oPositionMatrix)
        oPositionMatrix.SetTranslation(VectorDetail_3)
        Dim Detail_3 As Inventor.ComponentOccurrence = oAsDoc.ComponentDefinition.Occurrences.Add(sFileNameDetail_3, oPositionMatrix)

        ''SETTING THE CAMERA VIEW
        Dim oCamera As Inventor.Camera = oApp.ActiveView.Camera
        oCamera.ViewOrientationType = Inventor.ViewOrientationTypeEnum.kIsoTopRightViewOrientation
        oCamera.Apply()
        oApp.ActiveView.Fit()

        ''CONSTRAINT ON CYLINDRICAL FACES
        Dim oAxisDetail1 As Inventor.Face
        Dim oAxisDetail2 As Inventor.Face
        Dim oFace As Inventor.Face
        For Each oFace In Detail_1.SurfaceBodies(1).Faces
            If oFace.SurfaceType = Inventor.SurfaceTypeEnum.kCylinderSurface Then
                oAxisDetail1 = oFace
            End If
        Next
        For Each oFace In Detail_2.SurfaceBodies(1).Faces
            If oFace.SurfaceType = Inventor.SurfaceTypeEnum.kCylinderSurface Then
                oAxisDetail2 = oFace
            End If
        Next
        Dim oConstr As Inventor.AssemblyConstraint
        oConstr = oAsCompDef.Constraints.AddMateConstraint(oAxisDetail1, oAxisDetail2, 0,
                                                           Inventor.InferredTypeEnum.kInferredLine,
                                                           Inventor.InferredTypeEnum.kInferredLine)

        ''CONSTRAINT ON FLAT FACES
        Dim oFaceDetail1 As Inventor.Face
        Dim oFaceDetail2 As Inventor.Face
        For Each oFace In Detail_1.SurfaceBodies(1).Faces
            If oFace.SurfaceType = Inventor.SurfaceTypeEnum.kPlaneSurface Then
                oFaceDetail1 = oFace
            End If
        Next
        For Each oFace In Detail_2.SurfaceBodies(1).Faces
            If oFace.SurfaceType = Inventor.SurfaceTypeEnum.kPlaneSurface Then
                oFaceDetail2 = oFace
            End If
        Next
        oConstr = oAsCompDef.Constraints.AddMateConstraint(oFaceDetail1, oFaceDetail2, 0,
                                                           Inventor.InferredTypeEnum.kNoInference,
                                                           Inventor.InferredTypeEnum.kNoInference)
    End Sub
End Class

[FINET_Laurent]

Hi,

Instrad of iterating through all faces of the occurrence you could specifiy the face number like so :

Dim oFaceDetail1 As Inventor.Face = Detail_1.SurfaceBodies(1).Faces.Item(x)

x is the face item number, to get it you could use this rule in the part document :

Sub Main

Dim oDoc As Document
oDoc = ThisApplication.ActiveDocument

If oDoc.DocumentType <> kPartDocumentObject Then

	MessageBox.Show("This functionality is only aviable in a part document!", "Error! :C", MessageBoxButtons.OK, MessageBoxIcon.Hand, MessageBoxDefaultButton.Button1)
	Exit Sub

End If

Dim oPartCompDef As PartComponentDefinition
oPartCompDef = oDoc.ComponentDefinition

Dim Face As Face
Dim oFace1 As Face = ThisApplication.CommandManager.Pick(kPartFaceFilter, "Pick Face")

If oFace1 Is Nothing Then

	Exit Sub

End If

Dim oSurfaceBody As SurfaceBody = oFace1.Parent
Dim i As Integer

Try

	For i = 1 To 100000

		If oFace1.InternalName = oSurfaceBody.Faces.Item(i).InternalName Then

			MessageBox.Show("    " & i, "Face internal item number : ", MessageBoxButtons.OK, MessageBoxIcon.Asterisk, MessageBoxDefaultButton.Button1)

				Exit Sub

		End If

	Next

Catch

	MessageBox.Show("Unexpected error occurred!", "Error! :C", MessageBoxButtons.OK, MessageBoxIcon.Hand, MessageBoxDefaultButton.Button1)
	Exit Sub

End Try

End Sub

Hope this helps,

Regards,

FINET L.
