ifeatures in multi body part file

PACDrafting
Collaborator
Collaborator

I have 2 solid bodies in a part file driven by seperate ifeatures.



Why is it when i search down to the surface bodies then into say the first body, then component definition, then features, then ifeatures it shows both ifeatures?



So it goes:



componentdefintion.surfacebodies.item(1).componentdefinition.features.ifeatures



Is there an area somewhere that only shows the 1 ifeature related to a solid?



Thanks

0 Likes
356 Views
1 Reply
Reply (1)
Message 2 of 2

PACDrafting
Collaborator
Collaborator

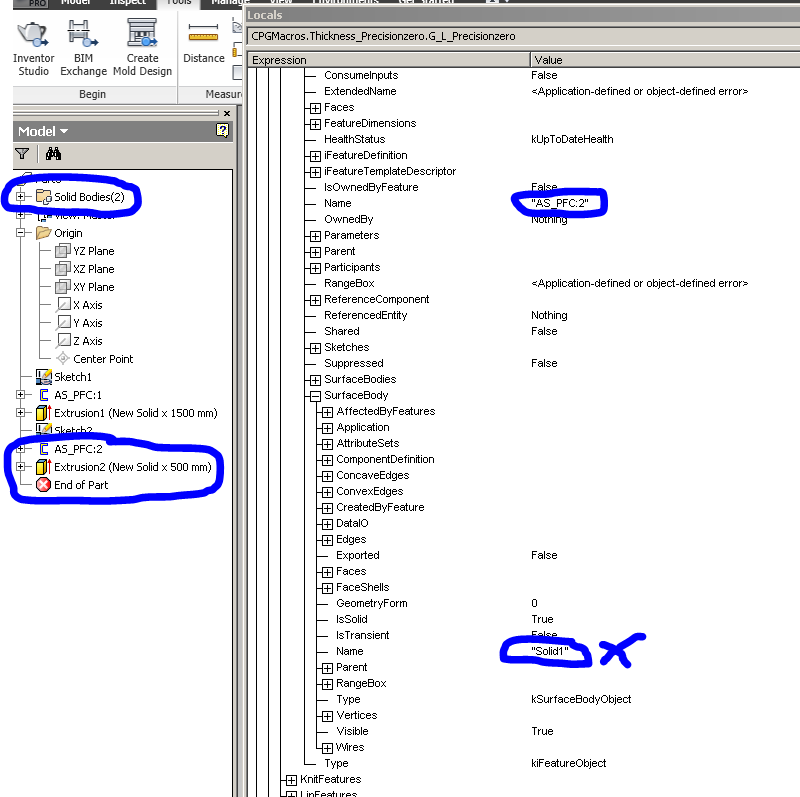

See pic below:



Why is the surface body showing it is attached to Solid1 when it should be Solid2?





ifeature issue.PNG

0 Likes
