Inventor API Pattern Elements from Rectangular Pattern

[florian_wenzel]

Hi,

Inventor 2022

API VB.NET VisualStudio

i try to use the Pattern Elements from my Rectangular Pattern, but without succes.

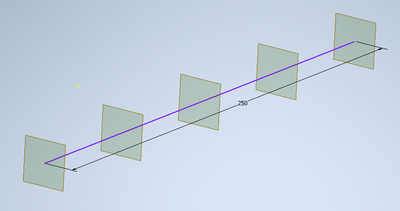

In Part Enviroment, i want to Pattern a WorkPlane 5 Times, fit to Path Lenght.

This Works.

Then i want to have Acces to the 2 or 3 WorkPlane from Pattern Elements, how to do this?

This is my Code:

Imports System.Runtime.InteropServices
Imports Inventor
Imports Microsoft.Win32
Imports System.Collections.Generic
Imports System.Linq

Module CommandFunctionButton_12

    Public Sub CommandFunctionfweButton_12()

        Dim oPartDoc As PartDocument = g_inventorApplication.ActiveDocument
        Dim oCompDef As PartComponentDefinition = oPartDoc.ComponentDefinition
        Dim oTO As TransientObjects = g_inventorApplication.TransientObjects
        Dim oTG As TransientGeometry = g_inventorApplication.TransientGeometry

        'Pick the Line
        Dim oLine As SketchLine = CType(g_inventorApplication.CommandManager.Pick(SelectionFilterEnum.kSketchCurveLinearFilter, "Pick a Line"), SketchLine)

        'Create Start point
        Dim oPoint As SketchPoint
        oPoint = oLine.StartSketchPoint

        'Create WorkPlane
        Dim oWorkplane As WorkPlane
        oWorkplane = oCompDef.WorkPlanes.AddByNormalToCurve(oLine, oPoint)

        'Create Object Coll for WorkPlane
        Dim oObjColl_01 As ObjectCollection
        oObjColl_01 = oTO.CreateObjectCollection
        oObjColl_01.Add(oWorkplane)

        'Create Path
        Dim oPath As Path = oCompDef.Features.CreatePath(oLine)
        Dim Count As Object = 5

        'Create Pattern Def
        Dim oRectPatternDef As RectangularPatternFeatureDefinition
        oRectPatternDef = oCompDef.Features.RectangularPatternFeatures.CreateDefinition(oObjColl_01, oPath, True, Count, PatternSpacingTypeEnum.kFitToPathLength)
        oRectPatternDef.XDirectionSpacingType = PatternSpacingTypeEnum.kFitToPathLength
        oRectPatternDef.OrientationMethod = PatternOrientationEnum.kAdjustToDirection1

        'Create Pattern Feature
        Dim oRectPattern As RectangularPatternFeature
        oRectPattern = oCompDef.Features.RectangularPatternFeatures.AddByDefinition(oRectPatternDef)

        'till this Moment Works Fine

        Dim oObjColl_Pattern As ObjectCollection
        oObjColl_Pattern = oTO.CreateObjectCollection
        oObjColl_Pattern.Add(oRectPattern.PatternElements)



        ''For Each oWorkPlaneColl As WorkPlane In oRectPattern.PatternElements()

        ''    oObjColl_Pattern.Add(oWorkPlaneColl)

        ''Next


        Dim oWorkPlane_02 As WorkPlane
        oWorkPlane_02 = oObjColl_Pattern(2)


        Dim oWorkPlane_03 As WorkPlane
        oWorkPlane_03 = oObjColl_Pattern(3)


        Dim oSketch_01 As PlanarSketch
        oSketch_01 = oCompDef.Sketches.Add(oWorkplane)

        Dim oSketch_02 As PlanarSketch
        oSketch_02 = oCompDef.Sketches.Add(oWorkPlane_02)

        Dim oSketch_03 As PlanarSketch
        oSketch_03 = oCompDef.Sketches.Add(oWorkPlane_03)


        Dim oCenterPoint_01 As SketchPoint
        oCenterPoint_01 = oSketch_01.SketchPoints.Add(oTG.CreatePoint2d(0, 0))

        Dim oCenterPoint_02 As SketchPoint
        oCenterPoint_02 = oSketch_02.SketchPoints.Add(oTG.CreatePoint2d(0, 0))

        Dim oCenterPoint_03 As SketchPoint
        oCenterPoint_03 = oSketch_03.SketchPoints.Add(oTG.CreatePoint2d(0, 0))


        Dim oCircle_01 As SketchCircle
        oCircle_01 = oSketch_01.SketchCircles.AddByCenterRadius(oCenterPoint_01, 1)

        Dim oCircle_02 As SketchCircle
        oCircle_02 = oSketch_02.SketchCircles.AddByCenterRadius(oCenterPoint_02, 2)

        Dim oCircle_03 As SketchCircle
        oCircle_03 = oSketch_03.SketchCircles.AddByCenterRadius(oCenterPoint_03, 3)

    End Sub



End Module

Thanks for any Sugesstion

[Michael.Navara · Accepted solution]

You need to access to  oRectPattern.PatternElements(i).ResultFeatures(1). This is the work plane except the first element. There you need to use the source oWorkPlane instead.

Sub Main()
    Dim oPartDoc As PartDocument = g_inventorApplication.ActiveDocument
    Dim oCompDef As PartComponentDefinition = oPartDoc.ComponentDefinition
    Dim oTO As TransientObjects = g_inventorApplication.TransientObjects
    Dim oTG As TransientGeometry = g_inventorApplication.TransientGeometry

    'Pick the Line
    Dim oLine As SketchLine = CType(g_inventorApplication.CommandManager.Pick(SelectionFilterEnum.kSketchCurveLinearFilter, "Pick a Line"), SketchLine)

    'Create Start point
    Dim oPoint As SketchPoint
    oPoint = oLine.StartSketchPoint

    'Create WorkPlane
    Dim oWorkplane As WorkPlane
    oWorkplane = oCompDef.WorkPlanes.AddByNormalToCurve(oLine, oPoint)

    'Create Object Coll for WorkPlane
    Dim oObjColl_01 As ObjectCollection
    oObjColl_01 = oTO.CreateObjectCollection
    oObjColl_01.Add(oWorkplane)

    'Create Path
    Dim oPath As Path = oCompDef.Features.CreatePath(oLine)
    Dim Count As Object = 5

    'Create Pattern Def
    Dim oRectPatternDef As RectangularPatternFeatureDefinition
    oRectPatternDef = oCompDef.Features.RectangularPatternFeatures.CreateDefinition(oObjColl_01, oPath, True, Count, PatternSpacingTypeEnum.kFitToPathLength)
    oRectPatternDef.XDirectionSpacingType = PatternSpacingTypeEnum.kFitToPathLength
    oRectPatternDef.OrientationMethod = PatternOrientationEnum.kAdjustToDirection1

    'Create Pattern Feature
    Dim oRectPattern As RectangularPatternFeature
    oRectPattern = oCompDef.Features.RectangularPatternFeatures.AddByDefinition(oRectPatternDef)

    'till this Moment Works Fine

    Dim centerPoint = ThisApplication.TransientGeometry.CreatePoint2d(0, 0)
    CreateSketchWithCircle(oWorkplane, centerPoint, 1)

    For i = 2 To oRectPattern.PatternElements.Count
        Dim element As FeaturePatternElement = oRectPattern.PatternElements(i)
        Dim elementWorkPlane As WorkPlane = element.ResultFeatures(1)

        Dim radius As Double = i
        CreateSketchWithCircle(elementWorkPlane, centerPoint, radius)
    Next
End Sub

Sub CreateSketchWithCircle(workPlane As WorkPlane, centerPoint As Point2d, radius As Double)
    Dim oCompDef As PartComponentDefinition = workPlane.Parent
    Dim elementSketch = oCompDef.Sketches.Add(workPlane)
    elementSketch.SketchCircles.AddByCenterRadius(centerPoint, radius)
End Sub

[florian_wenzel]

Hi Michael.Navara

Thanks for Help, thanks for Solution
