Unwrap Surface Problem

[florian_wenzel]

Hi,

Inventor 2022

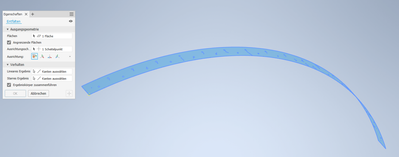

I try to Make a Unwrap of a Face, but without Success.

How to do it?

Thanks for Any Suggestion

[johnsonshiue · Accepted solution]

Hi! The Unwrap failure is due to the fact that the geometry is located way outside of valid model range (+- 100m in each direction). Please use Measure tool to find the coordinates of one vertex on the body. The use Move Bodies (Modify -> expand the panel) and apply the inverted transformation to move the surface back to the origin.

After that, Unwrap will work.

Many thanks!

[florian_wenzel]

Hi johnsonshiue,

Thanks for Solution, Thanks for Help.

But, i have other parts, and they are on the similary Position, and by the Other Parts the Unwrap Surface works Fine.

But never mind, great news, that Inventor Can do this.

[johnsonshiue]

Hi! The modeling behaviors outside of valid range (+-100m in X, Y, and Z) can be unpredictable. It may appear to work but it may fail all of a sudden. It is better to keep geometry within the range. Also, each piece of geometry should not exceed 100m.

Many thanks!
