sub assembly showing **** dashed lines in top assembly drawing

[Anonymous]

Hi.

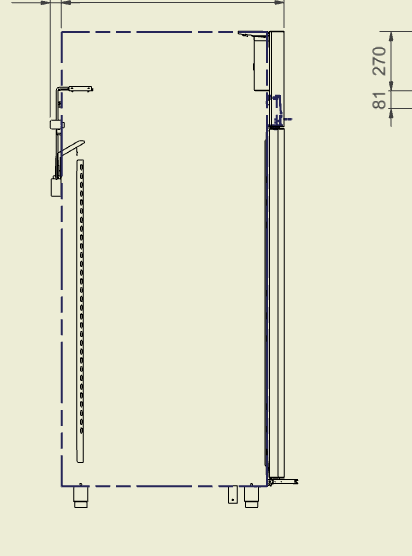

Why are some parts and sub assemblyes been displayed with dashed thick blue lines, in top assembly drawing.

Any ideas?

The wievs not in raster mode, and are fully updated as far as i can see.

[SBix26 · Accepted solution]

One possibility is that these parts and subassemblies are set to Reference.  In your top assembly, right click on one of these components and see what is checked under BOM Structure  4.
