I am making 2D sketches to move to a fluid dispensing machine. The arcs in the 2D sketch are strightened out in to straight lines. Ive tried a few different settings under the Export Sketch As > options but cant sem to get this to keep the arcs. I drew a few arcs in another file and a few came out correct and few were straightened out into straight lines. Any idea what I'm missing here? I used to create in a vector draw program then save as a Pdf, after I sent it off to cloudconvert and dloaded it as a .DXF. Hoping to do it all in Inventor
Saving to .DXF eliminates the arcs
Hello @Anonymous,

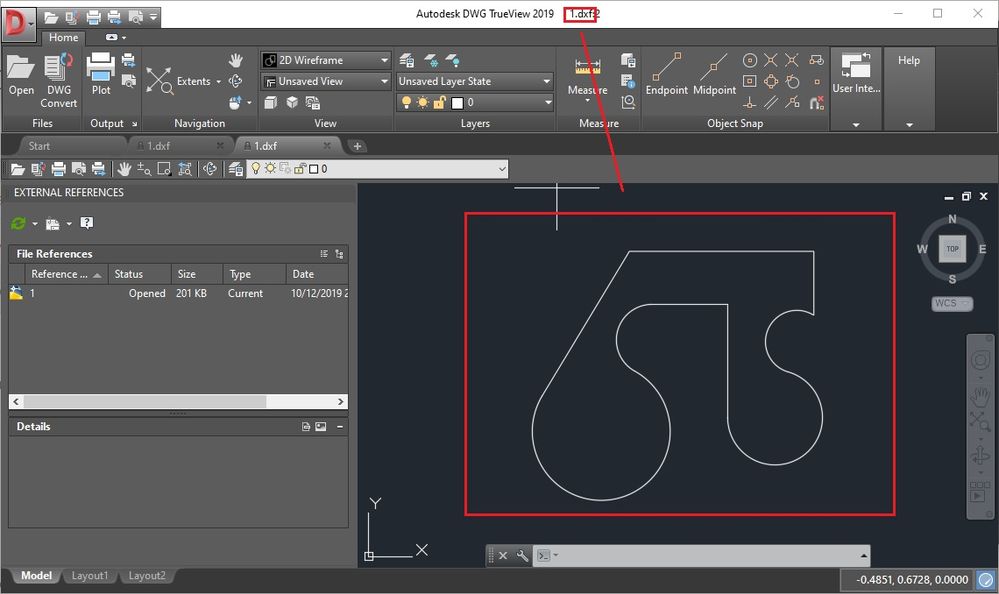

Try it in my end and it works as expected by checking DXF file.
Not sure if it is a case for your specific data or not, please upload your data here.
Xun
