Region Properties - Rotation Angle from projected Sketch Origin to Principal Axes (degrees):

[emanuel.c]

Why do I get a rotation angle from projected Sketch Origin to Principal Axes: 45 degrees? Is that how it is calculated?

I would like to get the Area moments of inertia with the part as drawn (with the X axis "pointing North" not 45 degrees).

I've tried drawing the part differently with no success.

Thank you!

[johnsonshiue · Accepted solution]

Hi Emanuel,

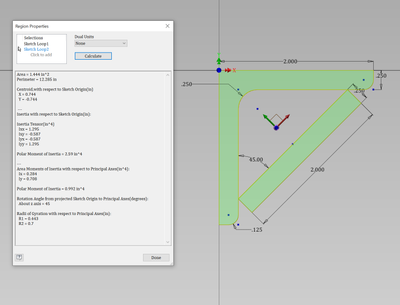

It is calculated based on the sketch coordinate system. The glossy arrows show the principal directions.

Many thanks!

[emanuel.c]

Thank you, understood.
