"Spiral" section cut help

ScottBoggess
Enthusiast
Enthusiast

Hey guys. I've done a few searches but haven't come across an issue quite like this.



If you take a look at the attached screenshots, I've got a model of an assembly that has nozzles/flanges spiraling down the outside of a cylinder.



I'm being asked to recreate a view similar to that of the second attached image. The idea is that it shows all the nozzles on the 'top' of the cylinder, showing their linear distance down the cylinder.



I've spent some time fiddling with this and I can't seem to get it to look how I want. Any suggestions?


0 Likes
719 Views
2 Replies
Replies (2)
Message 2 of 3

blair
Mentor
Mentor

Short of creating a separate IAM file or possibly a Positional View depending on how the nozzles are constrained.


Inventor 2020, In-Cad, Simulation Mechanical

Just insert the picture rather than attaching it as a file
Did you find this reply helpful ? If so please use the Accept as Solution or Kudos button below.
Delta Tau Chi ΔΤΧ

0 Likes
Message 3 of 3

WHolzwarth
Mentor
Mentor

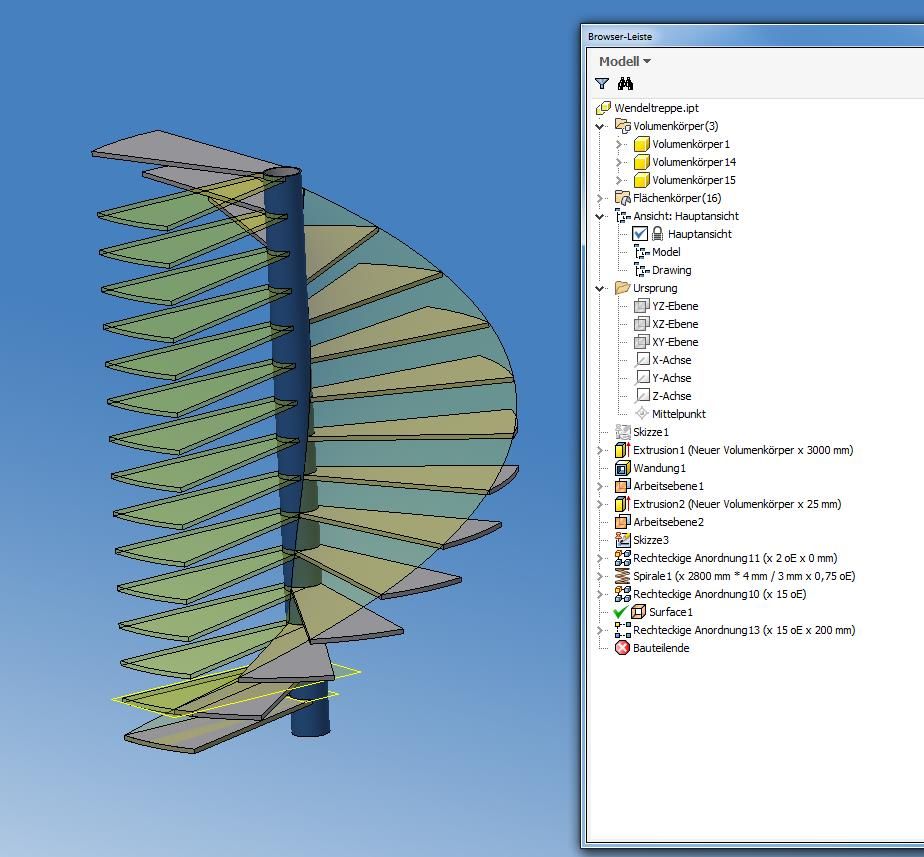

Could be possible like that with MBPs and Designviews:






Problem: Mass isn't ok. Perhaps the dummy steps should be only surfaces.



2017 file attached.



 Later: That's the surface look.








Walter Holzwarth
