Problem with rip command

[SCASTILLO-RMI]

Attached is a simple reducer cone made from 14 ga stainless. I am trying to rip it to create a flat pattern, but despite following the step by step on several youtube videos I can't seem to get it to work.

Please take a look and let me know what I am doing wrong.

Thank you

[n_Sovljanski]

Hi,

In attachment is file created in I2022.2. I removed shell feature and used Thicken on surface feature. Thicken feature adds material normally on surface what is necessary for sheet metal.

[Gabriel_Watson]

3D Model (tab) > Convert to Sheet Metal > Rip
You will also need a line or point to point on the surface of the cone where you wish to create the Rip:
https://help.autodesk.com/view/INVNTOR/2022/ENU/?guid=GUID-B30BDD38-9CF6-496E-9133-52A59CDCAEE6

[SCASTILLO-RMI]

Thanks for taking a look. Unfortunately I can't open the file as I am running 2021.

That said, I have used the rip command successfully on other parts that featured the shell command.

What is different about this part that shell needs to be removed?

[SCASTILLO-RMI]

Yes, I have done that by following the example shown here:

https://www.google.com/search?q=rip+command+cone+in+inventor&client=firefox-b-1-d&channel=tus5&ei=gU...

I get as far as choosing the two points and then get an error message.

[n_Sovljanski]

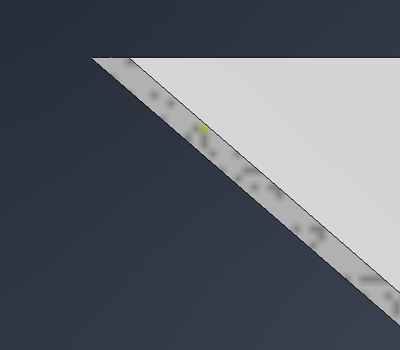

This cross section for shell

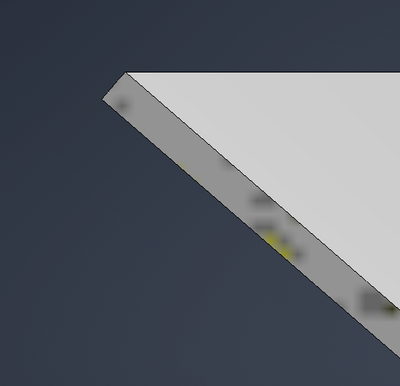

This is from Thicken

This is your modified sketch

Pay attention revolve will create surface

Cteate WorkPoint for rip

Apply rip on one point

[n_Sovljanski · Accepted solution]

Hi, I forgot two important things.

1 For thicken command input desired thickness

2. Convert your model part in sheet metal part

[SCASTILLO-RMI]

Thanks for the pics, they pointed to the problem. I squared off both edges perpendicular to the rip line - as you show in your second pic - and the command worked.
