linear animation export

scacpiacenza
Enthusiast
Enthusiast

Hi

I am wondering if it is possible to export a linear animation for a post analysis of the animation with excel



Thanks in advance

Stef

0 Likes
763 Views
11 Replies
Replies (11)
Message 2 of 12

JDMather
Consultant
Consultant

@scacpiacenza

Can you elaborate on your problem description?

I suspect that what you are looking for is the Trace function in Dynamic Simulation.

Can you Attach your assembly here?


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


Message 3 of 12

scacpiacenza
Enthusiast
Enthusiast

hi

thanks for your reply
I am not looking for a dynamic simulation, i am looking to export the linear animation in an excel file to perform an off line analysis

0 Likes
Message 4 of 12

JDMather
Consultant
Consultant

@scacpiacenza wrote:

…in an excel file to perform an off line analysis


That sounds exactly like Trace to me.



An assembly must include parts.


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 5 of 12

scacpiacenza
Enthusiast
Enthusiast
hi
thanks for your reply
I am not looking for a dynamic simulation, i am looking to export the
linear animation in an excel file to perform an off line analysis
0 Likes
Message 6 of 12

JDMather
Consultant
Consultant

@scacpiacenza

Where are your parts?

In Inventor parts are in the form of *.ipt files.





-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 7 of 12

scacpiacenza
Enthusiast
Enthusiast

as requested

0 Likes
Message 8 of 12

scacpiacenza
Enthusiast
Enthusiast

as requested

0 Likes
Message 9 of 12

scacpiacenza
Enthusiast
Enthusiast

as requested

0 Likes
Message 10 of 12

JDMather
Consultant
Consultant

@scacpiacenza

From observing your Studio animation I suspect that you will need to do a Trace output from Dynamic Simulation.

Can you explain in more detail your design goals?


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 11 of 12

scacpiacenza
Enthusiast
Enthusiast

thanks once again for your reply

I want to study off line the timing

I want to export the time in an excel file and adjust the duration of the movements

0 Likes
Message 12 of 12

scacpiacenza
Enthusiast
Enthusiast

below what i ddd and meant

but will be great if a command can do this

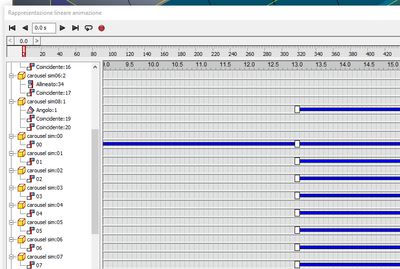

 part/assemblyconstrain013306474778790103104114120133171183184197 222223228
trasl ycarousel sim:0000[][ ]
trasl ycarousel sim:0101 [ ]
trasl ycarousel sim:0202 [ ]
trasl ycarousel sim:0303 [ ]
trasl ycarousel sim:0404 [ ]
trasl ycarousel sim:0505 [ ]
trasl ycarousel sim:0606 [ ]
trasl ycarousel sim:0707 [ ]
trasl ycarousel sim:0808 [ ]
trasl ycarousel sim:0909 [ ]
trasl ycarousel sim:1010 [ ]
trasl ycarousel sim:1111 [ ]
trasl ycarousel sim:1212 [ ] [ ]   [][]
trasl xcarousel sim:1226          []
trasl xcarousel sim:1429                  [ ]
trasl ycarousel sim:1415            [] []
