Inventor Part - Change orientation

[Anonymous]

Hi there,

I created a multi body part and then used the Make Part command to export the outermost dimensions of the object. For extracting/exporting, I made use of the illogic codes and its working find.

The issue is the part is orientated in a certain angle and the extracted dimensions are calculated based on the bounding box. Please refer the images attached.

Anyway to re-orient the model to the bounding box or extract the true lengths of the model?

Any help would be appreciated.

Also, is there any way to extract dimensions from the measure tool ?

Images

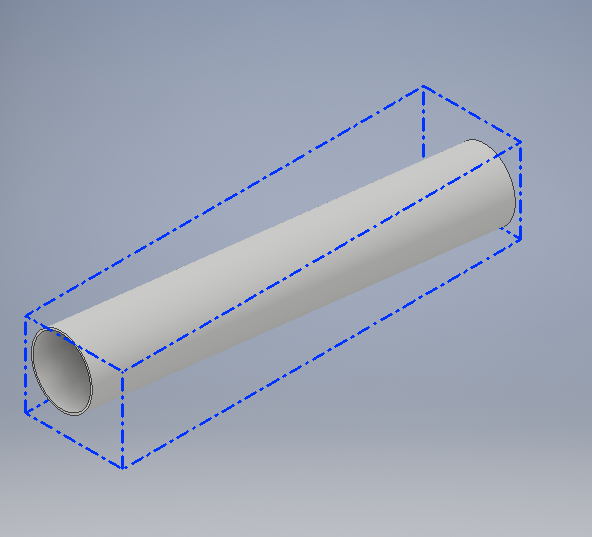

Part : Orientation of object with the bounding box

Part1 : Dimensions with the illogic rule

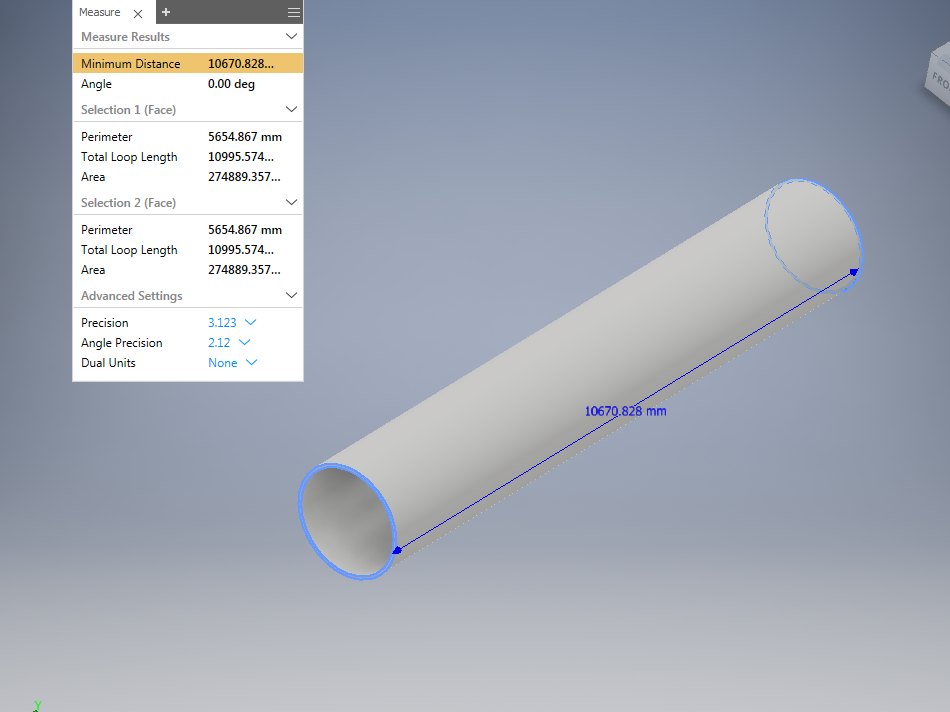

Part2 : True dimensions with measure tool

Cheers !

kelly.young has embedded your images for clarity.

[Lewis.Young]

Could you please attach the file you want to orientate? The first thing to make sure is that the sketch for the part is modeled around the origin properly, but it's hard to tell exactly how you've done it.

Lewis Young
Windows 7 x64 - 32GB Ram
Intel Xeon E5-1620 v2 @ 3.70GHz
nVidia Quadro M2000 - 4GB
Inventor Professional 2017.3
Vault Basic 2017
3ds Max 2018

[Cadmanto]

Typically you would RC on the feature in the browser and redefine the sketch plane.

Given you have created this part in iLogic, I would think there should be a way with in your rule to re orientate it.

I personally am not good with iLogic so I can't help you there.

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2018

[johnsonshiue · Accepted solution]

Hi! You can use Direct Edit -> Body -> Rotate or Move to re-orient the body.

Many thanks!

[Anonymous]

Hi John. Worked well for me. Thanks for the help.

[Anonymous]

Thank you Soooooo Much!,   This had been driving me mad for three days!
