INVENTOR DRAWING- CENTERLINE POSITIONS NOT CHANGED ACCORDINGLY PARAMETRIC MODEL

[sameer.marathe]

We have done ilogic program for Belt Conveyor model. When we update model (Belt width), in Inventor Drawing Centerline & centermark remains unchanged , It needs to be updated with respect to model, It looses references, so meanwhile we tried giving centerline in sketch with constraints but still they remain unchanged. Please suggest us proper method to mark centerline using ILOGIC

[Lewis.Young]

Hello,

Would it be possible to share the code here? It's hard to tell the problem without actually seeing your process.

Lewis Young
Windows 10 x64 - 32GB Ram
Intel i7-7700k @ 4.20GHz
nVidia Quadro P2000 - 5GB
Inventor Professional 2020
Vault Basic 2017
3ds Max 2020

https://akmedesign.co.uk

[sameer.marathe]

We have created model in iLogic and for draft we are using ilogic for placing views only.

For centerlines we are using only constraints for fixing it, But after updating model centerlines looses its constraint & not updating its required position.

We need any solutions for fixing centerline either by constraint method or by iLogic coding

Furthermore We need solution for fixing Dimensions & Text.

[Lewis.Young]

Hi Sameer,

As i said it's hard to understand without seeing the code. You can private message me it if you like and i can have a go, but posting here would be more beneficial to you as there's many experts who could solve it.

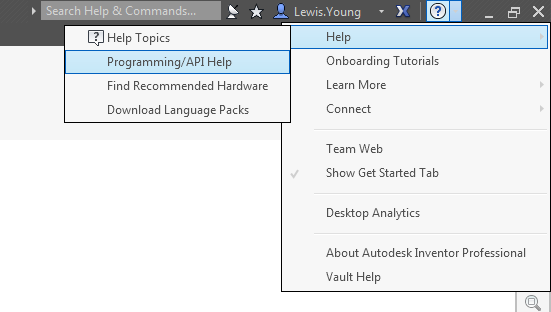

Within inventor there's actually a help section dedicated to API and will give you information on how to properly use the coding as well:
