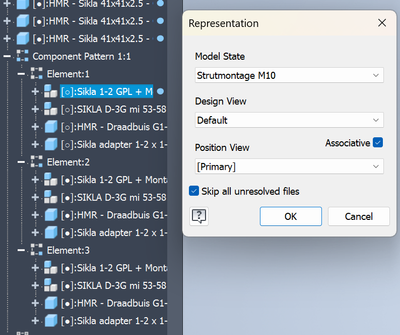

At my pattern the first element has a modelstate "strutmontage M10"
In my second element the represenation is set to "primary". Is this normal?
Inventor 2026 component pattern of modelstate goes to primary
Hi Arjen,
I think this is a limitation at the moment. There isn't a workflow to configure Design View Rep per Model State. As a result, DVR and MS are like two independent representations.
However, Component Pattern can be configured in Model States table. The source component MS does drive the pattern instance MS accordingly.
Many thanks!
Johnson Shiue (johnson.shiue@autodesk.com)
Software Test Engineer
