Inv 2020 Assembly Display / Graphics issue.

Anonymous
Not applicable

Hi,
I have an issue with displaying one assembly. It is bizarre that this happens only on this assembly. All parts / subassemblies are correct and display OK when opened separately.
Graphics card and inventor are all up to date, system inf / graphic card details in screen shoots.
Any suggestions?
Thanks.
Tom

0 Likes
871 Views
5 Replies
Replies (5)
Message 2 of 6

Anonymous
Not applicable

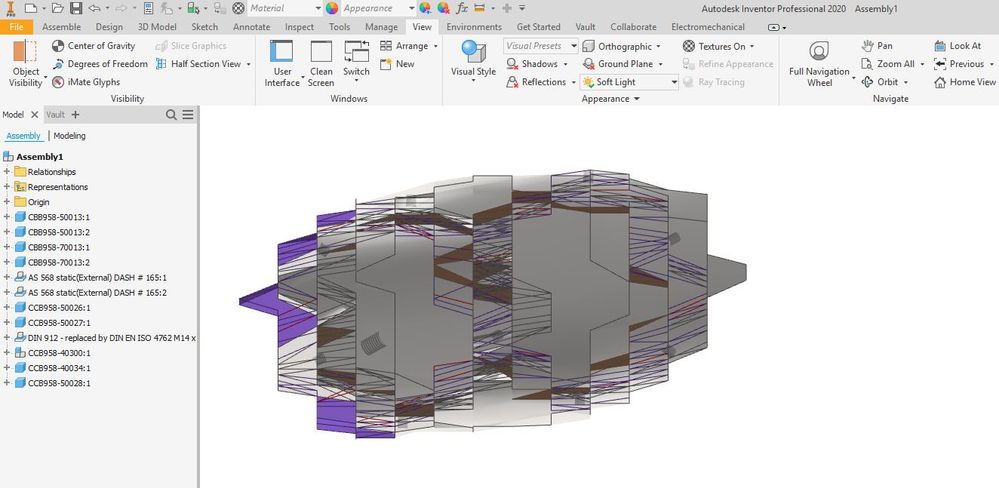

Sorry forgot to attache the most important the printscreen of the problem.




0 Likes
Message 3 of 6

Xun.Zhang
Alumni
Alumni

Hello @Anonymous,

It would be great if you can provide the data to me (xun.zhang@autodesk.com) for more investigation.

Thanks!


Xun
0 Likes
Message 4 of 6

Anonymous
Not applicable

What data?

0 Likes
Message 5 of 6

johnsonshiue
Community Manager
Community Manager

Hi Tom,



We need to see the Inventor files. Is the part geometry extremely big or small or very far away from the origin?

Many thanks!



Johnson Shiue (johnson.shiue@autodesk.com)
Software Test Engineer
0 Likes
Message 6 of 6

johnsonshiue
Community Manager
Community Manager

Hi Tom,



Many thanks for sharing the files with us! I took a quick look and I did not see the overlapped graphics either. I suspect it could be related your environment. I think you have done it already. But, just to double-check. Make sure graphics driver (CAD mode, not Game mode) is up-to-date. All critical Windows updates are installed. Disable any gaming related graphics acceleration option.

If nothing helps, try a simple test and see if it works better. Go to Tools -> App Options -> Hardware -> Conservative mode. Close and reopen the assembly. Does it work better? If yes, it is definitely graphics hardware related.

Thanks again!



Johnson Shiue (johnson.shiue@autodesk.com)
Software Test Engineer
