Import *.DWG to 3D solids (respectively *.STP, STEP-format)

[christian_frey2]

Dear forum,

I know how to import a Autocad DWG file to Inventor as 3D solids. As I understand almost nothing about the solids (and *.STP) format, which, however, I need to create for a manufacturer, I wanted to ask, why in the converted file (see attached), I don't "see" any 3D model (though I created one in Autocad), respectively, what does the manufacturer "see" after all ? Something like my Autocad Model perspective ?

Thanks a lot,

chris

Attached, 2 DWG Autocad files in 3D and one corresponding Inventor solid file (due to file size constraint).

[Gabriel_Watson · Accepted solution]

"nicht extrudiert" did not import any solids here, but the other one did. Here is the process:

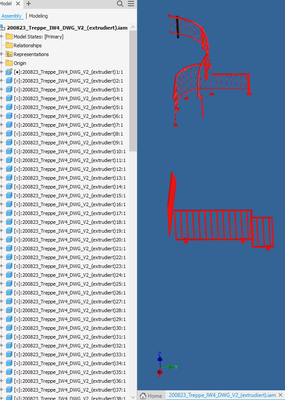

Result:

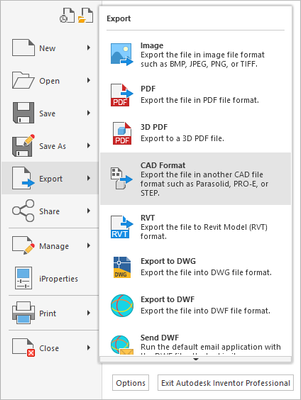

Then discard the 2D entities that end up in a 2D drawing (DWG), and you can export the IAM with 3D entities as a single STP file:

See attached.

[Frederick_Law]

"nicht extrudiert"

Has 3D sketch, no solid.

[JDMather · Accepted solution]

@christian_frey2

@Gabriel_Watson

List in AutoCAD indicates a mix of solids and surfaces.  I doubt you want to discard the surface bodies.

[christian_frey2]

Thanks a lot to you all! I see the point of 3D solids - hmm, I obviously only wanted solids, but somehow I mixed that up with surface solids. I should get rid of that in Autocad.
