Hello everyone, I'm using Inventor for drawing 3D and 2D hydraulic parts.
In the 2D usually I create a Sketch and draw all the parts of a hydraulic scheme by myself. There is a way/add-on/tool that can help me to do this without draw everytime the parts? Like import symbols from a library..
This is an example found on internet:
Thank you all!
Hi!
You can create your own symbol library in one as blocks dwg (or idw), and then you can cinsert those symbols (blocks) along your work, they will be always available to insert them quickly, every time you need them:
@g.rocco
Hi. I'm sure there are excellent reasons why you are doing these schematics in Inventor. Still, I just wanted to mention that AutoCAD Electrical has a Hydraulics module for laying out these schematic drawings, with some built-in intelligence behind the symbols, such as part numbers, catalog numbers, etc.
Did you find a post helpful? Then feel free to give likes to these posts!
Did your question get successfully answered? Then just click on the 'Accept solution' button. Thanks and Enjoy!
Chris Benner
Community Manager - NAMER / D&M
The library is just a file placed in a specific folder***, where you can find the symbols
You can share it with your colleagues, and they have to place the doc in the same folder in their PCs.

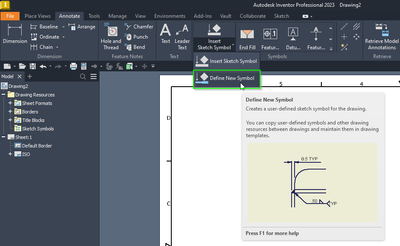

First, you have to create the symbols in a document.
After creation, the symbols will be local in this file.
You can add the local files to a "symbol template" doc.
This file will be at:
C:\Users\Public\Public Documents\Autodesk\Inventor 20xx\Design Data\Symbol Library (or similar)***
Then you have the symbol template available to other documents.
read the Inventor help for this topic.
https://help.autodesk.com/view/INVNTOR/2023/ENU/?guid=GUID-65BD78D6-47EE-4E6F-A617-CD62E77DE73F
https://help.autodesk.com/view/INVNTOR/2023/ENU/?guid=GUID-EF6BFD15-804A-4A9B-A002-C75B61ED6E75
