How to scale sketch block in a part

[RobNZIFSL]

I have a logo with custom text in it; as this font does not exist, I have traced it and saved it as a block.

I want to scale the block but can't figure out how.  The block properties have a scale tick box, but it achieves nothing.

I have tried to use the sketch scale tool by selecting the already placed block, but it deselects when selecting the tool...so does nothing.

Does anyone know the secret?  I do not want to 're-dimension the block contents' every time I want to scale the block...that defeats the purpose of block IMO.

[89198826955]

video

[johnsonshiue · Accepted solution]

Hi! Another way to scale the sketch block is to derive it and set the scale.

Many thanks!

[RobNZIFSL]

This looks to me like you are editing the block and scaling its contents, not scaling the block itself.  Am I wrong?

I can do that, but that is not what it needs to do.  It needs to scale the block.

I have a nested block, i.e. blocks inside of blocks.  So each letter in the logo is a block that can be reused rather than copying a bunch of lines/curves.

Then those blocks are inserted into a block to arrange into something sensible.

It seems to me blocks are simply not selectable by the scale command.  I have set up a test block and selected it:

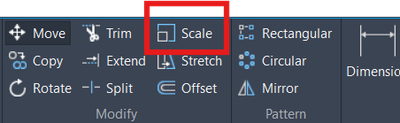

As soon as I select the scale button, it deselects:

I can try to select it all I want, it will not select.

Can Autodesk please confirm whether what I am seeing is normal behaviour or not?  Thanks.

[RobNZIFSL]

Hi Johnson:

This worked but is not intuitive; can you please review my above post and advise.

In the meantime, thanks for that suggestion...it is a good workaround for my needs right now.

[johnsonshiue]

Hi Rob,

Inventor's Sketch Blocks are rigid. Dynamic shape change isn't supported. You will need to edit the Sketch Block definition or derive it with a scale factor.

Many thanks!
