Flat Pattern dome for DXF File

2 REPLIES 2
Reply
Message 1 of 3
KWarrenCA
76 Views, 2 Replies

Flat Pattern dome for DXF File

Does anyone know a good way that you can create a dxf file that would only show the hole cutouts but not the outside diameter of the dome. I know we can save as copy dxf and modify the dxf but we use vault to export dxf flat patterns and would like to make this an automated process.2024_12_31_09_27_51_Autodesk_Inventor_Professional_2025.png

Labels (2)
2 REPLIES 2
Message 2 of 3

Hi

You can use the Unwrap tool, then create a sketch and project only the edges you care about. The sketch can be exported to DXF.


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | WWW | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


Message 3 of 3

@KWarrenCA , another workflow to try is using something like this. You might need to incorporate Model States or use a multibody sheet metal part, to be able to have both the formed and flat solid, but the DXF part of this would something along these lines.



Hope that helps,

Curtis

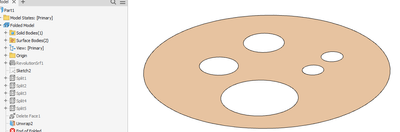

create the dome as a surface






Use Unwrap to get the flat






Use Thicken to make it a solid






Create a flat pattern, and then Save Copy As





Turn off the Outer Profile layer

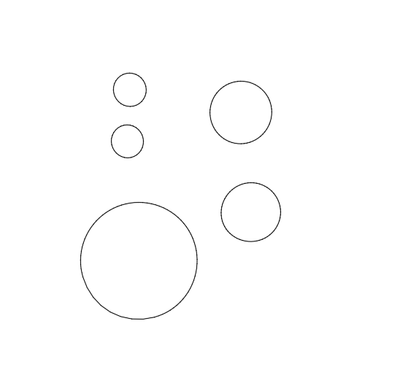

Open the DXF in AutoCAD and note the outer layer is turned off.
