Double miter corner joint in Frame Generator

[ppacifico7LL22]

I have a corner consisting of 3 tubes coming together which I would like to miter properly. But when I select all 3 tubes and click miter in Frame Generator, the miter doesn't come out the way I'd like.

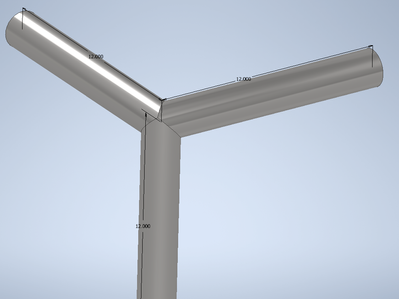

This "double miter corner joint" image shows what I'm looking for:

Is there a way to do this strictly with Frame Generator operations? What am I doing wrong? Wrong order of operations?

[CGBenner]

@ppacifico7LL22

Hello, and welcome to the forum!

I'm pretty sure that, at this time, Inventor will only do a single miter in Frame Generator.  This type of double miter will probably need to be manually modeled at the assembly level.

[Gabriel_Watson]

You could try and miter first the "tooth" one against a pipe or solid at an angle, then use that to miter the other two against it on a second step. See if that approximates best what you see in the real world example pic.

[James_Willo]

Is this what you are trying to achieve?

If I select all three members in one go it works fine for me. Which version of Inventor are you on?

[kacper.suchomski · Accepted solution]

Since several versions of Inventor, you can edit multiple corners at once. Brilliant update.

If you have an older version and cannot select all profiles in one command; post here and someone will show you how to do it by hand.

[CGBenner]

Wow!  You can tell it's been a few years since I worked directly with FG!  Thanks for sharing these responses @kacper.suchomski @Gabriel_Watson & @James_Willo !

[ppacifico7LL22]

Thank you all. I think my frame parts were slightly out of alignment with each other due to manually offsetting some of the parts away from their lines. I tried again with a fresh assembly and it worked:

Thanks again!

Is there any way to automatically offset a frame member to align it with another frame member that has already had offsets applied to it?

(Edited for clarity)
