Dimensions not appearing on drawing.

[aky]

Hello

I use Inventor Professional 2019.

Inventor dwg stopped showing dimensions... Old drawings created with the same template works fine.

But I cannot create new drawings and add dimensions.

I can't seem to find why... Please help!

Thank you

[Cadmanto]

Those are dangling dimensions which means they have lost their connection to those points on the model.

What changed in the model?  Is this model an ipart?

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2018

[Sergio.D.Suárez]

Hi, do you have the dimension layer activated in the drawing template?

Excuse me I had not paid attention to the image  you had uploaded

[aky]

These are newly added dimensions..

[aky]

Dimension layer is definitely on.

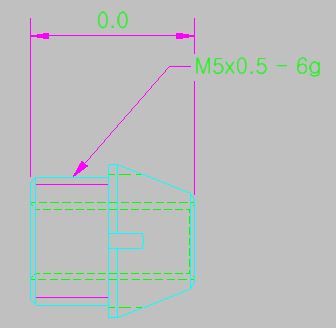

I can see the dimension lines, they just say all values are "0.0". It's like inventor can't measure the length.

But in the part, I can measure them just fine. It's just when I create an inventor dwg, Dimension doesn't work.

[aky]

Hole/Tap Dimensions show up just fine.

All Linear Dimensions show up as 0.0

[Cadmanto · Accepted solution]

Is this an imported model or did you create it from scratch?

Does this thread speak to anything you are experiencing?

https://forums.autodesk.com/t5/inventor-forum/idw-model-shows-grey-lines-and-i-cannot-pull-dimension...

Can you post your model?

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2018

[aky]

I created it from scratch. I couldn't find the issue and inventor kept crashing so I re-installed inventor and it seems to work okay now.

Thank you.
