Custom Tracer in Dynamic Simulation

Anonymous
Not applicable

Hello,



i need to trace a specific point of my assembly with a tracer during dynamic simulation to get the positional data. So far i was only able to select certain faces. Can i specify a custom point to be traced?

Thanks

0 Likes
Accepted solutions (1)
475 Views
4 Replies
Replies (4)
Message 2 of 5

JDMather
Consultant
Consultant

Yes, this is easy to do.

Attach your assembly here for demonstration.


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 3 of 5

Anonymous
Not applicable

Hi, thanks for your reply!



Attached is the project. The cylinder moves by rotating one of the shafts.. Im interested in tracing multiple points on and in (e.g. center of gravity) the cylinder..

0 Likes
Message 4 of 5

JDMather
Consultant
Consultant
Accepted solution

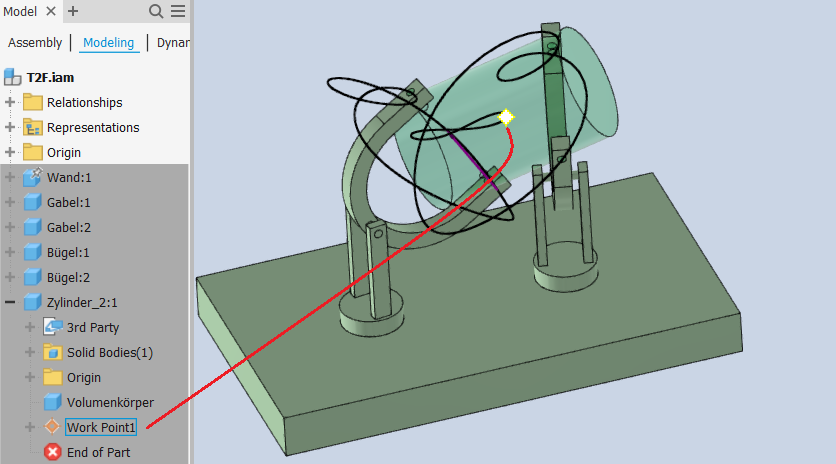

Place a Workpoint in the center of the cylinder.

(Or at any location that you want to trace.)

Be sure to put the point in the part file (not assembly level).



-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


Message 5 of 5

Anonymous
Not applicable

Thanks for this! Works very well! Another question: Is it possible to trace the working point in terms of angular velocity rather than linear velocity?
