Cannot create flat pattern

[Anonymous]

Hi,

I have this component that cannot be unfolded. I don't understand where it went wrong..

Any help much appreciated.

Thank you.

[Anonymous]

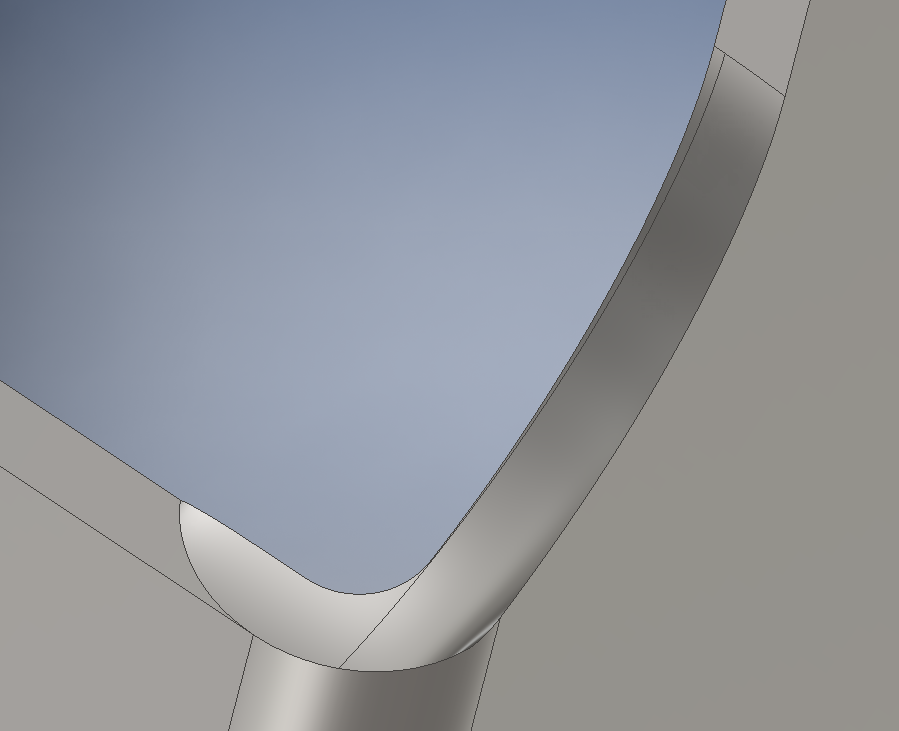

Corner1 and Corner4 are your issues. The radius was too big. Switching to 4 mm solved it. Also note how your Cut6 is sick. You should add these types of features at the very end of your part so you don't reference features that you could end up changing.

[Anonymous]

How can I fix that corner round?

[Anonymous · Accepted solution]

Assuming you're using 2017, see the attached ipt. If not, I updated my first reply to indicate how to fix it.

[Anonymous]

Great!! Thank you very much!

[Anonymous]

One more question? How did you edit the radius from 6mm to 4mm?

[Anonymous]

Right click the corner round in the feature tree and select edit feature.

[Anonymous]

There's no edit option..

[Anonymous]

Right click in the feature tree. See attached

[Anonymous]

Apologies for the silly questions. Thanks for all the help.
