Align dimension text parallel to dimension orientation

throwaway_222223
Enthusiast
Enthusiast

Is there any way to make my dimension text align itself parallel to the dimension?



This is how it is now:






This is what I'd like to accomplish:








I edited the 2nd image in Paint to make it look the way I want so you can see what I'm trying to accomplish in Inventor drawings.



Can this be done easily?



0 Likes
Accepted solutions (1)
443 Views
2 Replies
Replies (2)
Message 2 of 3

Gabriel_Watson
Mentor
Mentor
Accepted solution

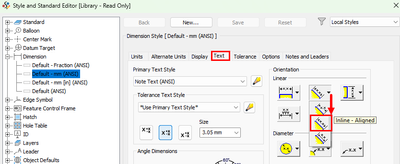

Right-click the dimension > Edit Dimension Style > Text tab > Orientation > Linear > pick Inline - Aligned:




Message 3 of 3

throwaway_222223
Enthusiast
Enthusiast

Perfect, thank you!
