Informed Design Sample Content
Explore sample datasets and reference materials here to assist with onboarding and continuous learning of Informed Design capabilities

Basic Wall Panel with Door Opening Sample Inventor Assembly

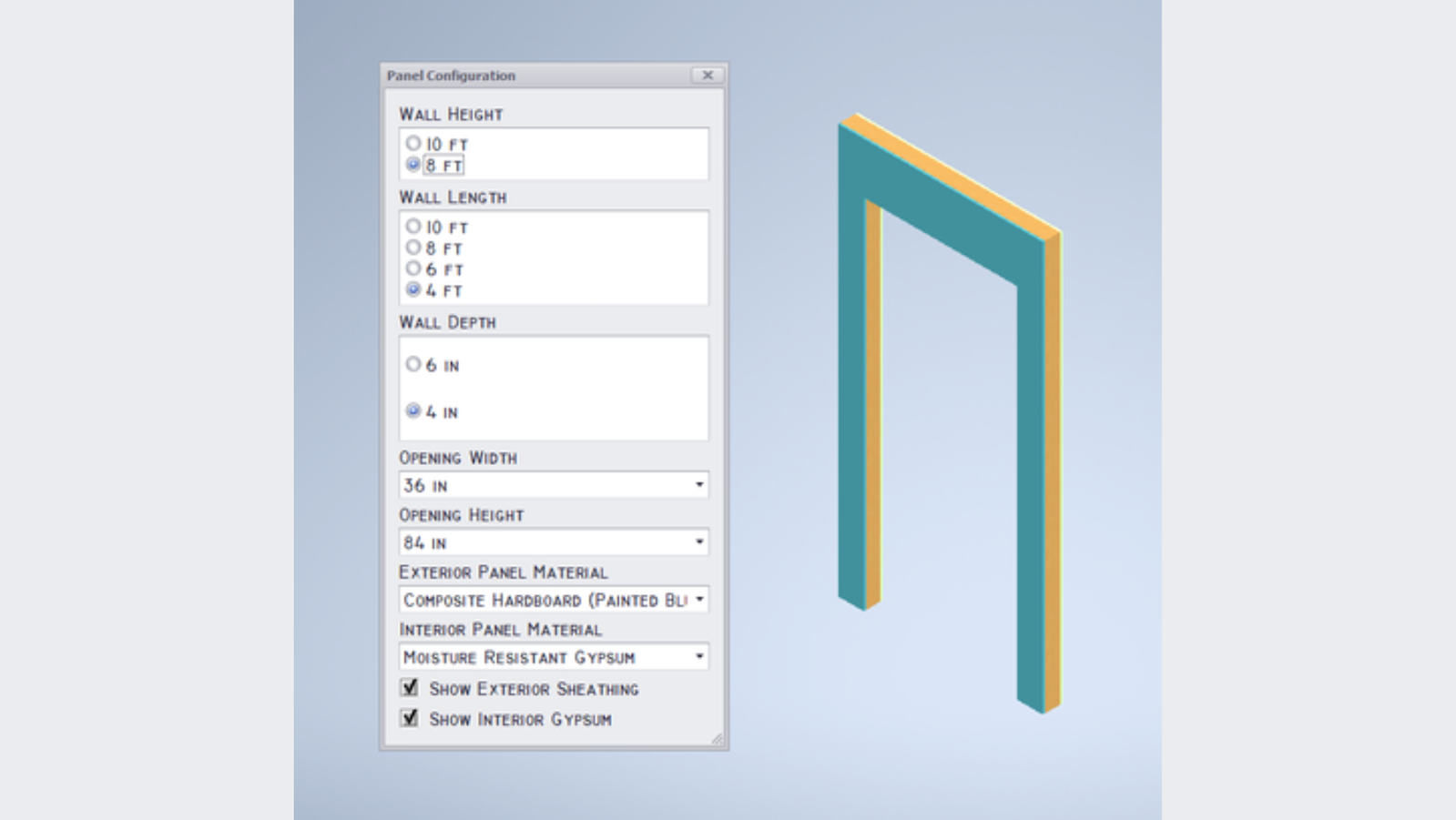

This Inventor Assembly sample of a Basic Wall Panel that includes a door opening incudes iLogic model rules along with an iLogic form for configuring the model on the desktop as well as an Informed Design Product Definition (named W_02 Assembly) that is complete and ready to Publish.



The Codeblock rules included show examples of how to set Input Parameter Value lists, specify Input Read Only properties, set a parameter value based on a condition, as well as how to use a simple function to set all the Input Label properties on the form.



W_02 Assembly Product Definition Rules and Form.png



Download the dataset from the Attachments at the bottom of this article.
