Graphics Card - Cut Arrows Not Appearing

[Anonymous]

Hi Everyone,

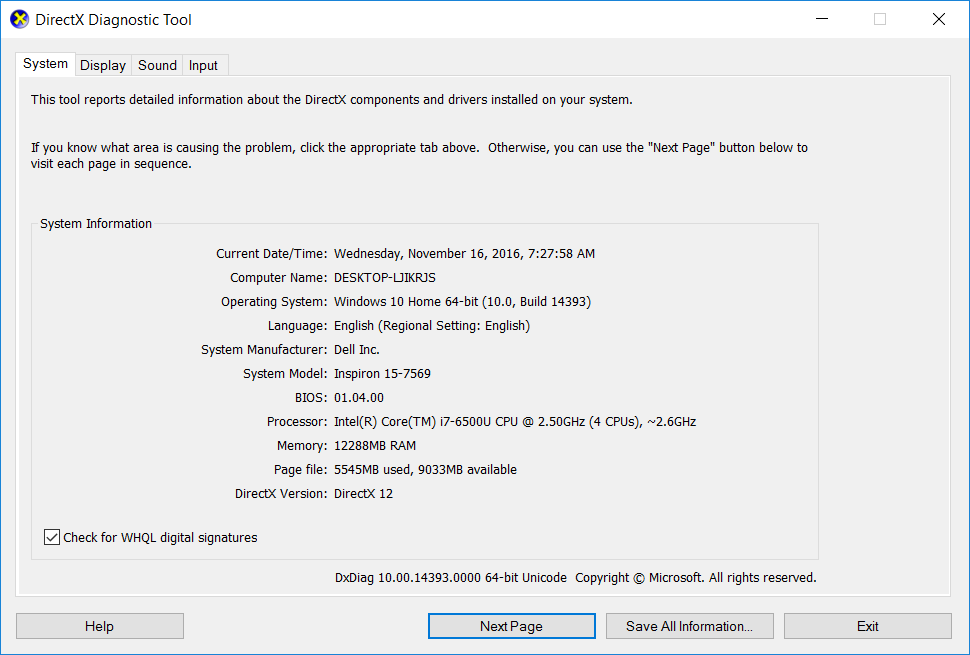

I'm running the newest version of HSMXpress with SolidWorks 2016, and here are my specs:

I'm not seeing contour cut direction arrows:

I've updated my graphics card drivers:

When I turn on software OpenGL in the System Options > Performance tab, the arrows reappear, but my system is generally too slow to use.

Thank you for your help,

Aaron

[Anonymous · Accepted solution]

I had this exact issue on some of our workstations that also had Intel integrated graphics. We turned off all anti-aliasing in Solidworks, and they appeared. Give that a try:

Tools - Options - Display/Selection - Anti-aliasing box, just below slider - choose "None"

[Anonymous]

Correct

Thank you cdaniel, this works:

[kb9ydn]

Thanks a million for this!  This fix still works even years later on the newest version of HSMWorks.
