If you have a Fusion 360 Subscription, a SVG emboss will export just fine from a 2D Drawing of the flat pattern. I did not try an DXF but I feel pretty confident it will work also. You are correct, if you attempt to create a DXF for the flat pattern in the model, it will not work. By the way, the SVG was added in the Unfolded state.
John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
The DXF Export of your flat pattern works fine from the 2D Drawing DXF Export but will not work from the DXF Export from the model. I am not sure what you are trying to tell me with your last post concerning SVG in different applications?
John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
See >>this video<< for trick to get any desired geometry to dxf.
In the video I missed getting the island faces - but I think you can figure it out now.

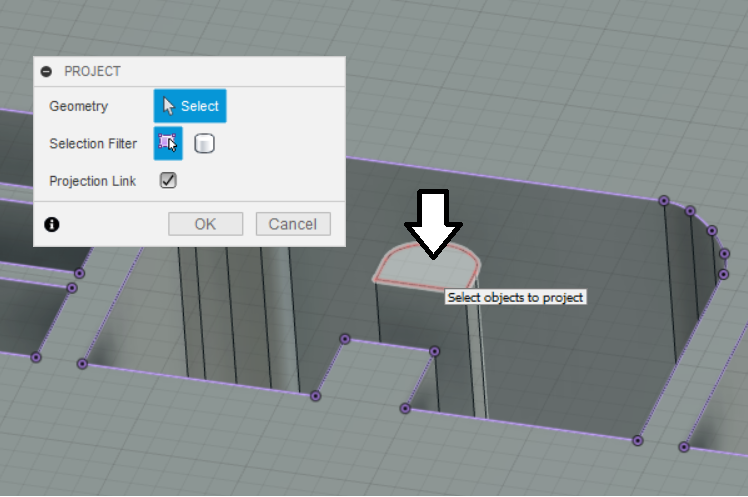

The key was to Project any desired geometry into flat pattern sketch and then right click > Save As dxf.
