Problems with DXF / SVG extruding

15 REPLIES 15
SOLVED
Reply
Message 1 of 16
scottavidon
306 Views, 15 Replies

Problems with DXF / SVG extruding

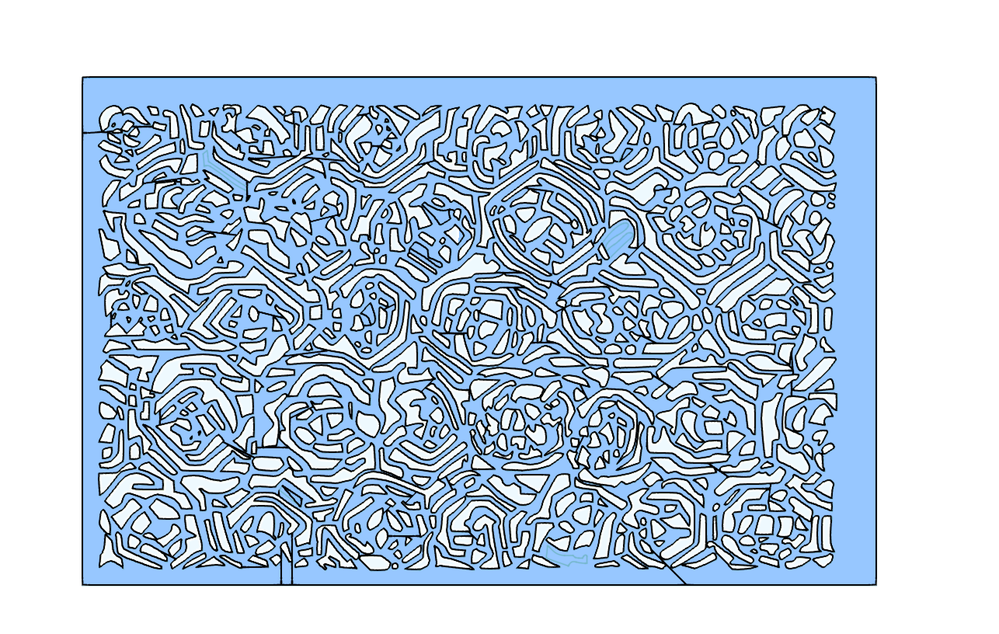

Hi,  I'm struggling with this file. I created an svg (also tried dxf) and when i insert it some of the shapes appear as empty paths and won't extrude. I get an error message saying can't complete boolean operation. There may be overlapping paths but I can't figure out if there are in fusion.  I'm using this file to laser-cut corten steel sheet and I can't figure it out.  Here are a couple screenshots of when I insert the svg and also showing one of the shapes that doesn't "Fill" when I select all the shapes.  Any guidance will be appreciated.  Thanks,  Scott

15 REPLIES 15
Message 2 of 16
davebYYPCU
in reply to: scottavidon

Divide and Conquer, in this file, a temporary line fills both sides, good luck.

I saw 4 or five open regions, minuscule airgap, but impossible to find,



Might help....

Message 3 of 16
djlunty
in reply to: scottavidon

@scottavidon

There is an app on the Fusion App Store called Fill Gaps.  Will find small gaps and either join or fill.  Useful for svg and dxf files that always seem to have gaps when imported into Fusion

Doug

Message 4 of 16
Warmingup1953
in reply to: scottavidon

It's a mess! I assume these are to be holes in a plate? What size is the plate itself and is it a simple rectangle? What program did you use to create the .SVG? Can you share the .svg?

Message 5 of 16
g-andresen
in reply to: scottavidon

Hi,

This will be a Sysiphus job.

Since direct processing with Divide & Conquer is very computationally intensive due to the numerous elements in the required representation of the profiles, the affected parts must first be projected into a new sketch.
You can then proceed according to this principle:
Some profiles then become profiles again when projected. For others, the gaps must be determined using the cross line method (divide et conquer).







günther





Message 6 of 16
jeff_strater
in reply to: scottavidon

the weird thing with this one is:  The profiles are all computed correctly (even though there are a LOT of them).  But, they don't get drawn.  If you select them, they will be selectable:

Screenshot 2023-11-15 at 7.27.53 AM.png



and, if I draw a rectangle around it, the entire inner profile is also fine:

Screenshot 2023-11-15 at 7.27.36 AM.png



so, I don't know why the profiles are not drawn, but you should be able to use them just fine.


Jeff Strater
Engineering Director
Message 7 of 16
g-andresen
in reply to: jeff_strater

Hi,


@jeff_strater wrote:



and, if I draw a rectangle around it, the entire inner profile is also fine:




I recognize these unclosed profiles:





günther

Message 8 of 16
Warmingup1953
in reply to: g-andresen

Success in part...By saving your sketch 1 as a .dxf and then using the inbuilt Utility Bulk DXF Importer with a gap tolerance of 0.001" ( Ithink it was) worked mainly.Corten.jpg



I imagine you can sketch in new shapes to extrude cut as required.

Message 9 of 16
jhackney1972
in reply to: scottavidon

With a few exceptions, this extrusion can be done using a Surface Patch/Thicken.  For the few areas that did not become a part of the original patch, a Surface Extrude/Split Body will take care of them.  I hope I did not miss any areas. Also the thickness desired was not specified, I used 0.25 inches.  Model is attached.





"If you find my answer solved your question, please select the Accept Solution icon"

John Hackney
Retired

Beyond the Drafting Board


Message 10 of 16
scottavidon
in reply to: g-andresen

Thank you for your help Gunther. I appreciate it.  Scott

Message 11 of 16
scottavidon
in reply to: jhackney1972

John, As always, thanky ou for your help. I am very grateful. Scott

Message 12 of 16
scottavidon
in reply to: g-andresen

Jeff, thank you for your help. I appreciate it. Scott

Message 13 of 16
scottavidon
in reply to: jeff_strater

Jeff, Thank you for your help. I appreciate it. Scott

Message 14 of 16
scottavidon
in reply to: Warmingup1953

Thank you for your help with this.  Scott

Message 15 of 16
scottavidon
in reply to: djlunty

Thank you for your help on this. I appreciate it. Scott

Message 16 of 16
scottavidon
in reply to: davebYYPCU

Thanks Dave. I appreciate your help. Scott
