FILLET OR SCULPT?

[Anonymous]

Hi guys, newbee here.

I'm not at all familiar with Fusion 360, but I think it rocks!

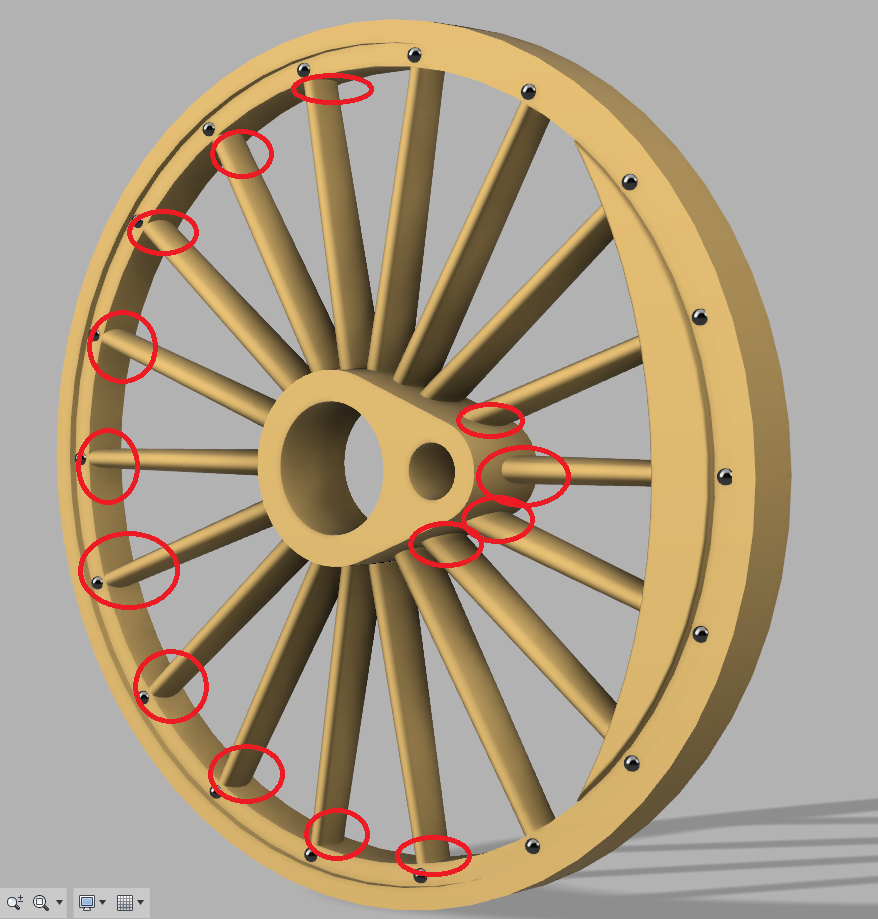

I need to make a scale steam locomotive wheel and for the most part it's pretty close, but I can't get the point where the spokes enter the rim and the hub look right. I hoped to get it right with "Fillet" but that doesn't work. "Sculpt" didn't work either...

Can anyone of yoy guys give me a hint on how to proceed?

thenks, Jacob

[promm]

@Anonymous,

Are you will to share the model?  I am happy to take a look and make a video of the workflow that I would take.

Cheers,

Mike Prom

[Anonymous]

Hi Mike, yes of course, that would be great!

I send a the *.f3d file as attachment, I hope that will work out right.

Thank you for trying.

Reagrds, Jacob

[promm · Accepted solution]

@Anonymous,

The workflow to get what you are looking for is fairly advanced.  I first combined both of the bodies so that I could put a fillet between the two.  The fillet causes the circular shape to loose form, so I created a sketch and cut away the fillet area.  Next I split the face of the inner circle for my loft profile and sketched a line for a rail to keep the loft straight.  Finally I created a loft using the two profiles, edges and sketch as a rail.  Here is a video of the workflow and attached is the file.  You can then pattern this and repeat for the outside.

http://autode.sk/2xkRntu

Cheers,

Mike Prom

[Anonymous]

Thank you so much for your effort Mike!

You made me understand Fusion 360 a little bit better.

Regards,

Jacob

[promm]

No problem @Anonymous,

Best of luck with the train, happy to help if you get stuck again.

Cheers,

Mike Prom
