Attempting to import the attached DXF (created in SolidWorks 2019) file fails, with an error that simply reads:



Error: Fails to insert this DXF file!



The DXF opens fine in CarbideCreate, the only other CAM software I have at my disposal to test with.



Any ideas why Fusion 360 can't open it?



Edit: Was unable to attach the DXF, but the file can be found here .

0 Likes
Accepted solutions (2)
4,683 Views
9 Replies
Replies (9)
Message 2 of 10

jeff_strater
Community Manager
Community Manager

I tried loading this into viewer.autodesk.com, and it also failed with this error:

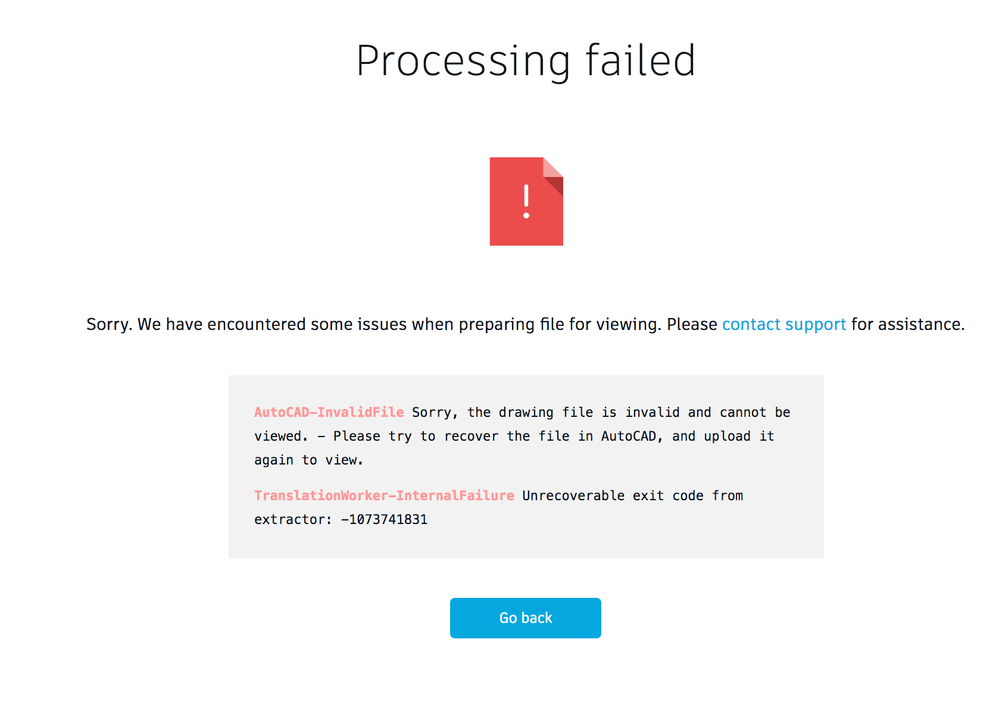

Screen Shot 2019-12-17 at 5.52.40 PM.png



it seems as if this DXF might be corrupt in some way.  Where did you get it, and can you load it into any other software?



You can also zip the file to attach it here directly.




Jeff Strater
Engineering Director
0 Likes
Message 3 of 10

Anonymous
Not applicable

Hi Jeff,



I've been able to open the files in CarbideCreate and Google Sketchup, but those are the only other pieces of software I have access to. The files were created in SolidWorks 2019 I believe.



I've attached a .zip file with this and several other files that also fail to open.



Thanks for your help. I would really prefer to use Fusion 360 for this project!

0 Likes
Message 4 of 10

jeff_strater
Community Manager
Community Manager

thanks for sharing those files.  Every one of them that I tried has failed - in Fusion, in viewer.autodesk.com, and in Inventor (that's all the apps I have handy to try).  I'll dig a bit deeper to see if I can find an AutoCAD expert around to see what is the problem in these files.




Jeff Strater
Engineering Director
0 Likes
Message 5 of 10

jeff_strater
Community Manager
Community Manager
Accepted solution

I had an AutoCAD expert look at those DXF files, and verified that they are, indeed, invalid DXF files.  Specifically, he said "It looks like it has no model space Block Table Record, which I can imagine is an unacceptable situation for an AutoCAD file".  I realize that this doesn't help you much, but I don't think there is much more we can do for you on the Fusion side.  I'm not sure why some DXFs from the same export work and others do not.




Jeff Strater
Engineering Director
0 Likes
Message 6 of 10

HughesTooling
Consultant
Consultant
Accepted solution

@Anonymous  I can open the files with Rhino Ok. Maybe try QCad to see if it's a bit more tolerant as well, then save out of QCad.


Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


0 Likes
Message 7 of 10

Anonymous
Not applicable
Thanks!

The files open in Sketchup too, so I’ve been using that to save them out
before opening in Fusion 360. Just frustrating that the extra steps are
necessary. The author is going to have a look to see if there’s something
in the DXF export process out of SolidWorks but it does seems strange the
files seem to open everywhere except Fusion 360.

Message 8 of 10

ciaran.dowds18
Explorer
Explorer

I've got the same problem 😞

0 Likes
Message 9 of 10

jonavark
Advocate
Advocate

me too. won't import. won't upload. just disappears after trying to upload.

0 Likes
Message 10 of 10

g-andresen
Consultant
Consultant

Hi,

please create a new thread and share (attach) DXF file



günther
