Construction line disappears
it's hard to say without the design. Can you share it here? It looks like a sketch inside one of your components has gone invisible, and you probably just need to make it visible again.
Jeff Strater
Engineering Director

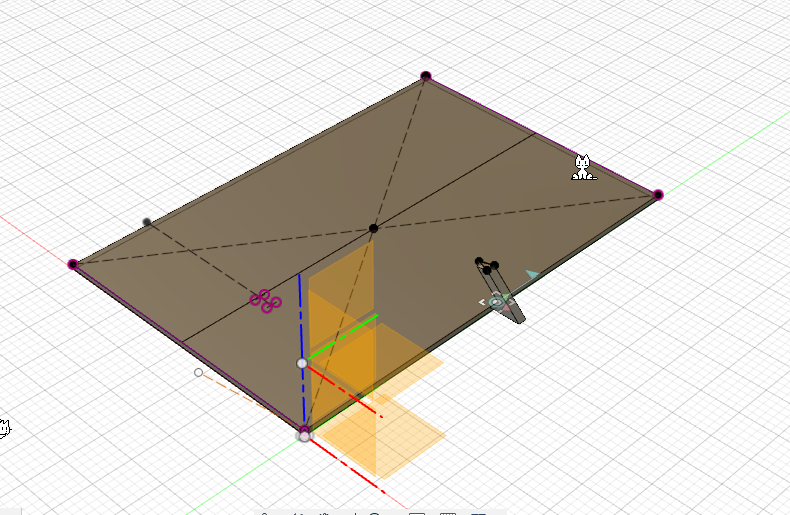

I see what happened [but don't know why]. Look at this capture at the end of that screencast:
There on the left of the plate is the construction line -- the strut got jointed but it left the constuction line behind. I made the construction line by starting a sketch on the top of the strut, constructed the line and 'end sketch'. What could I have done wrong in setting up the construction line to make it not be 'stuck' to the strut?
Accepted solution
To make sure the construction line stays with the part, make sure the construction line is a part of one of the sketches you used to create the component. Then, at any time you desire, you can return to the part in the browser and make the sketch "visible" that contains the construction line. By the way, if the component is linked to a file outside of your assembly (i.e. you place the file by using the "Insert into current design" from the datapanel) then you must break the link to make the sketch visible.
John Hackney, Retired
