Can I get the reaction torque on a shaft that isnt on the x or y axis?

[cfischer_engr]

This is a delta robot with a 20lb force applied to the effector. Each crank is fixed on its revolute shaft location. I want to understand the torque requried to hold the structure static.

The reaction forces page when highlighting the revolute joint of the crank arm shows torques in 3 axis. The arm on the right happens to be aligned with the x axis so I can see the torque on this arm to hold the structure still is 534Nmm. The other crank arms are not aligned with x y or z. How can I see the torque requried to hold the delta still?

Image shows reaction on arm aligned with x axis.

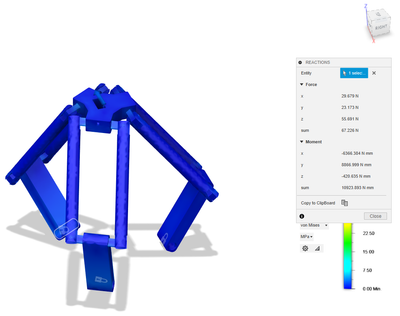

This image shows reactions for the arm on the left. What am I to do with these numbers?

Thanks for any help!

[henderh · Accepted solution]

Hi @cfischer_engr,

Reactions can only display values with respect to the global coordinate system, there isn't a way to show them via a local coordinate system.

A workaround is to run the simulation with the model rotated, so that the arm is aligned with a global x, y, z axis. You can do this in Simulation, without affecting the model in the Design workspace.

1. Go to the Simplify workspace
2. In the browser, right-click on the Simulation Model > Clone Simulation Model (with the study)
3. In the cloned sim model, use the Modify > Move / Copy command to rotate the entire assembly so that an arm is aligned with a global axis
4. Run the simulation for the rotated Sim model (make sure the force is still aligned properly)

Hope this helps!

[cfischer_engr]

Thank you for the response.

This is very unfortunate as rotating and resolving for each arm is a lot of work. Especially when I want to analyze many locations to understand the entire work envelope.

I hope fusion considers a more articulate method for displaying the reactions in the future.
