Bending help

Anonymous
Not applicable

I have made bends in the model previously, but all the sudden the last part I need to bend, will not.



It has been converted to sheet metal and is of complete uniform thickness.

The component in question is the top cover component.



0 Likes
Accepted solutions (3)
589 Views
13 Replies
Replies (13)
Message 2 of 14

jhackney1972
Consultant
Consultant
Accepted solution

Your issue is that the component is a sheet metal component but the body inside that component is not a sheet metal body.  Screencast will explain.  Model attached.

John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 3 of 14

Anonymous
Not applicable

Thanks so much, I saw that the body was different, but I couldn't figure out why.

Thanks again

0 Likes
Message 4 of 14

TheCADWhisperer
Consultant
Consultant

Motherboard top mesh is modeled incorrectly.

The technique used is bound to cause issues down the road.



Top I/O box is incorrectly modeled.

You have no logical control over the size.

I thought that we already established that Bend was not the correct technique to use unless you understand Bend Allowance Hand Calculations.


Not only does this technique not return logical sizes, it is far more work than the correct technique.



(Also: This forum is for bugs.  You should be posting your questions >>over here<<.)

0 Likes
Message 5 of 14

Anonymous
Not applicable

Can you elaborate on how to achieve a rounded form like that without bends? I am aware that the mesh isn't quite right, but could you also tell me what you think is wrong with it?

0 Likes
Message 6 of 14

TheCADWhisperer
Consultant
Consultant

@Anonymous wrote:

Can you elaborate on how to achieve a rounded form like that without bends?


See Attached.




0 Likes
Message 7 of 14

Anonymous
Not applicable

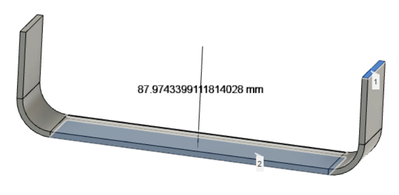

My bend screen doesn't look like that. This is what my bend screen looks like. How do I get that different window?

0 Likes
Message 8 of 14

TheCADWhisperer
Consultant
Consultant

Did you open the file that I attached and examine the Timeline?

What does the sketch look like if you Edit Sketch?

What is the name of the feature on the Timeline?



You must be observant to the nth degree to learn this stuff outside of a classroom.

0 Likes
Message 9 of 14

Anonymous
Not applicable

This is what it looks like when I edit sketch



so I need to do a flange?

0 Likes
Message 10 of 14

TheCADWhisperer
Consultant
Consultant
Accepted solution

@Anonymous wrote:

so I need to do a flange?


If you want to avoid doing hand calculations - yes.



If you really really want to do the hand calculations - let me know and I can walk you through the formula for Bend Allowance.  Do you own a Machinery's Handbook?

0 Likes
Message 11 of 14

Anonymous
Not applicable

Thank you, you are very helpful.



Right now I am taking much more information than I usually do, so I think I am good for now.

0 Likes
Message 12 of 14

Anonymous
Not applicable

Now I am trying to do that method again (it worked perfectly the first time) on the other side of the cover, and the flange wants to go vertical and now horizontal. I cannot find anything on how to change the flange's orientation

Part in question is Top cover

0 Likes
Message 13 of 14

TheCADWhisperer
Consultant
Consultant
Accepted solution

How did you end up with a sketch that is not on the sketch plane (see grid)?


Add another rectangle (at any location in space) to that sketch.

What do you observe?



0 Likes
Message 14 of 14

Anonymous
Not applicable

No idea how that happened. I deleted that sketch and did the exact same thing again and it worked fine...

0 Likes
