Hi guys,
I have something weird here.

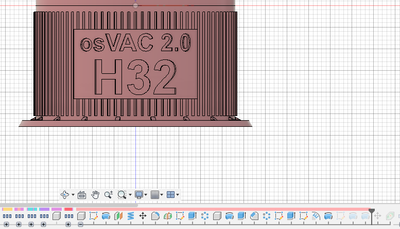

You can see the time marker right before a "move" in the time line. I marked the move along with another 3 items as "suppressed".
If I move the time marker one step, some bodies will move - despite the fact, that the "move" is supressed!!
I right clicked onto the move and I can see
Any ideas?!
This is likely another bug. I solidly stay away from suppressing timeline features.
I either need something, or I don't. If I don't I delete it.
If you change the move type to Translate, unsuppress then suppress it works as it should. Personally I would never use a Free Move in a parametric design, you could always just edit the distance with a translate rather than suppress.
Mark
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
@picadilly wrote:
@TrippyLighting schrieb:
Yeah, my thought, too. It is depressing. I run into something like that about every second day.
My question then is: Do you just keep plowing on, or do you sit back and reflect and maybe change your design approach ?
Even my most complex design don't even have 1/10th of the user parameters you have in this simple design. It makes absolutely no sense to spend that much time trying to create a user parameter for almost every dimension in the design.
Perhaps you might find it difficult to easily identify dimensions otherwise, but one of the reasons for that is that your sketches are overly complicated. Fillets and chamfers that can be applied as solid features should not be part of a sketch. In fact those features should be applied as late in the timeline as possible.
Suppressing 10+ features in the timeline is asking for trouble.
Sketching with overlapping sketch lines is bad practice and should be avoided:
That's just the first three timeline items 😉
@HughesTooling schrieb:If you change the move type to Translate, unsuppress then suppress it works as it should. Personally I would never use a Free Move in a parametric design, you could always just edit the distance with a translate rather than suppress.
Mark
As I already wrote, I wanted to suppress something while remodelling. But nevertheless thanks for your input.
@TrippyLighting schrieb:
@picadilly wrote:
@TrippyLighting schrieb:
Yeah, my thought, too. It is depressing. I run into something like that about every second day.
My question then is: Do you just keep plowing on, or do you sit back and reflect and maybe change your design approach ?
Even my most complex design don't even have 1/10th of the user parameters you have in this simple design. It makes absolutely no sense to spend that much time trying to create a user parameter for almost every dimension in the design.
Perhaps you might find it difficult to easily identify dimensions otherwise, but one of the reasons for that is that your sketches are overly complicated. Fillets and chamfers that can be applied as solid features should not be part of a sketch. In fact those features should be applied as late in the timeline as possible.
Suppressing 10+ features in the timeline is asking for trouble.
Sketching with overlapping sketch lines is bad practice and should be avoided:
That's just the first three timeline items 😉
Well, thanks for your comments.
Obviously there is a **** load of parameters and some got trashed out in the meantime. Nevertheless there are reasons for lots of parameters:
I do adapters vor vacuuming hand tools. For details, maybe you would like to look at: https://ossso.de/osvac
No, the idea is, that you can customize adapters according to your needs, just by changing a few a parameters. Just to name a few:
There is a parameter, describing the inner diameter your adapter should have. Then the material width is parameter, because if you go to bigger diameters, you may like to have more material width. Similiar issue about the height of the adapters. Them you have a gap between the adapters (so that you can put the male into the female). You want that gap smal to avoid vacuum leakage. But depending on your 3D printer, you may have to increase it to get usable results. There is parameter for the gap of the so called slip ring. Again: should be as small as possible. Another parameter describes the hose diameter...
Do you have reasons to believe that the intensive use of parameters provokes more problems with F360?
In regards to chamfers and filets:
The original design was done in Inventor, which I do not have. Instead I had some drawings. Based on them, I did my scetches - including chamfers and filets.
"Sketching with overlapping sketch lines is bad practice and should be avoided":
I agree. But I was not aware of it. It happened in a sketch that was on its way out of the design. It was still in the project, but not really used any more.
