Machine Simulation Update - Simulation of connection moves

[GeorgeRoberts]

Good Morning, Fusion Community

We have updated most of our Fusion library post processors to allow you to simulate many more movements of your program. This includes initial positioning of the machine, sending it to its home position, making tool changes, moving between two toolpaths, and parking the machine at the end of the program!

This will now allow you to check all of these parts of the program and ensure everything is safe before you run it on your machine!

connection moves.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 1:17

Loaded: 12.76%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -1:17

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

Follow these steps to enable the functionality:

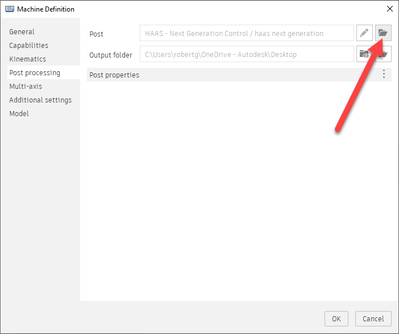

1.  Edit your machine file and go to the post processing tab
2. Select one of our generic post processors by choosing the select option
3. Select the desired post from the Fusion library
4. Enable the simulate connection moves feature

If you have any questions or feedback, please reply here or email me: George.roberts@autodesk.com

[nubrandao]

Awesome upgrade

[AllFyve]

Love the new updates! I had a question on tool changes though. Am I correct in saying that simulation doesn't show tool changes? Simulating a Haas UMC500 doesn't show the machine moving to the tool change position during tool changes.

[AchimN]

Thanks for your feedback!

What you should currently see is the machine moving to the G53/G28 Z home positions before a tool change. If there is a specific tool change position you´d like to simulate, the code for that is in the writeToolBlock function in every post but disabled:

machineSimulation({/*x:toPreciseUnit(200, MM), y:toPreciseUnit(200, MM), coordinates:MACHINE,*/ mode:TOOLCHANGE}); // move machineSimulation to a tool change position

If you want the simulation to move to a specific position prior to the tool change, you can uncomment the code and then enter your desired X/Y positions for the tool change.

Without tool change position:

without tool change position.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:10

Loaded: 89.57%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:10

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

With tool change position enabled:

with tool change position.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:22

Loaded: 44.78%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:22

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

[AllFyve]

Worked beautifully...Thank you!!

[AllFyve]

Ok, I have this working, but I don't understand the xy home position kinematics. The actual tool change position is X-23.799 Y-3.426 which I also use for my xy home position/park at end of program. I have to divide these by 2 to work otherwise the spindle ends up in the tool arm.

[AllFyve]

My XY origin was on my C axis. I went into the machine builder and moved components to the actual machine origin. This never reared its head until I selected simulate connection moves (preview feature) in my machine definition. All is well now...thanks for the help!!!

[AchimN]

Perfect, you did exactly the right thing by adjusting things with the machine builder. Thanks for your feedback!

[ashlemansam]

My simulation acts no differently after selecting the feature

[weber_dominic]

I think i have the same problem but i don't understand how you solved this.

 

When i move around the components it moves in weird ways i don't exactly understand. I guess it's similar to your problem before.

Any help would be appriciated!

[AllFyve]

Sounds like your kinematics were correct in the machine builder, mine was not. Cheers!!

[AllFyve]

For me, my XY was centered around the c-axis. I had to move xyz to the actual machine zero. I had to know how much to move the xyz from the c-axis to the machine zero. If you don't know this info you will need to get. Hope this helps!

Machine Builder.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:38

Loaded: 25.55%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:38

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

[AllFyve]

After I made adjustments in the machine builder, my tool holder was detached from the spindle during machine simulation by the amount I had moved my xy. To fix this go back to the machine builder and reselect the tool holder attach point.

Tool holder Attach Point.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:37

Loaded: 25.95%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:37

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

[andrew.colledge]

If you have a machine where the zero position needs to be adjusted, then rather than use Move Components (which will work) it is hopefully easier to use the new Save as zero option for the axis (in Machine Builder -> Preview Machine Movements -> ⋮ ). Simply drive the axis to the position that should be its zero position and click Save as zero, if everything looks correct, then select OK on the dialog to keep the changes.

(Save as minimum/maximum limit are available in the Insider release now, and should be available to everyone soon. Until then the limits can be adjusted from the Machine Definition -> Kinematics -> select axis.)

[weber_dominic]

Thanks guys. With the help from Charles it worked wonderful after a little fiddling around.
Great update! Also thanks to the post process team who corrected an error in the Doosan post very quickly!

[AllFyve]

Beautiful...much easier!
