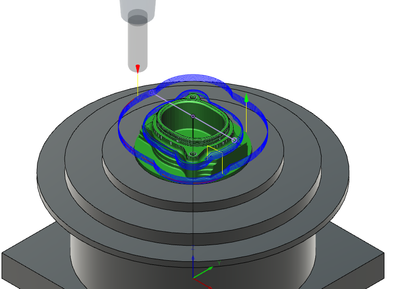

I'm getting a problem (which I've seen before) where the 3D Contour is machining the air around the tool boundary (see pictures). It doesn't matter if I select, Bounding Box, Silhouette or selection.



As writing this I realise that it goes away if I select "Rest Machining". Is this intended behaviour?



Tried to attach a file but it is taking an age to export it...











0 Likes
Reply
Accepted solutions (1)
630 Views
4 Replies
Replies (4)

Anonymous
Not applicable

If you don't need fixture attached to model for purpose of detecting crash, just remove it and save file in f3d format then upload.

I find f3Z files awfully annoying and in many cases people stuff their file with junk just for illustration purpose which makes it a nuisance to share.

0 Likes

Laurens-3DTechDraw
Mentor
Mentor
Accepted solution

I'm pretty sure the answer is you have unchecked the contact only box on the geometry tab.

Laurens Wijnschenk
3DTechDraw

AutoDesk CAM user & Post editor.
René for Legend.


0 Likes

Laurens-3DTechDraw
Mentor
Mentor

Contact Only.png

Laurens Wijnschenk
3DTechDraw

AutoDesk CAM user & Post editor.
René for Legend.


0 Likes

mattdlr89
Advisor
Advisor

That seems to fix it! Thanks, it has frustrated me  a few times in the past so good to know how to cure this.

0 Likes
