Orientation of idents of components getting changed while all pcb layout rotate

3 REPLIES 3
Reply
Message 1 of 4
anuradha.bodke
89 Views, 3 Replies

Orientation of idents of components getting changed while all pcb layout rotate

Hello Team,



I am making pcb file in fusion , when my design was finalized, I  re arranged all idents of components neatly

now for preparing pcb panel, I need to rotate all pcb design in specific angle for adjusting proper panel size

While doing so all the idents of components are also getting  rotated,



as per my understanding this will not tobe happened, idents are kept as it is

also share image for  better understanding

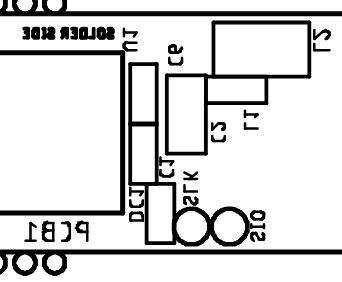

this is individual pcb



Individual pcb.png

this is pcb while rotating by angle 90 degree for panel purpose



pcb in panel.png



Please if you can do, keep ident as it is after rotation of pcb layout



Thanks in Advance



Anuradha

3 REPLIES 3
Message 2 of 4

Hello @anuradha.bodke ,



I hope you're doing well. This is where you would use the spin flag on the text. By default the text always auto rotates to be "easily" readable. If you go into the properties you can check the spin flag for the text which will make sure it doesn't auto rotate.



Let me know if you continue to run into problems.



Best Regards,



Jorge Garcia
​Product Support Specialist for Fusion 360 and EAGLE

Kudos are much appreciated if the information I have shared is helpful to you and/or others.

Did this resolve your issue? Please accept it "As a Solution" so others may benefit from it.
Message 3 of 4

Hello  @jorge. garcia



That means if I don't want to rotate idents of components even though all pcb layout rotate. for so

I have to on spin command in property bar of all components

is it correct, because I don't want to change idents of components as I already arranged them



Please give reply



Thanks In Advance

Anuradha





Message 4 of 4

Hello @anuradha.bodke,



I hope you're doing well. Technically, you only have to set it on the texts that are rotated the wrong way but easiest to just set it for all of them.



Let me know if you continue to run into problems.



Best Regards,



Jorge Garcia
​Product Support Specialist for Fusion 360 and EAGLE

Kudos are much appreciated if the information I have shared is helpful to you and/or others.

Did this resolve your issue? Please accept it "As a Solution" so others may benefit from it.
