After Update to 2.0.15775 transfer 2D PCB to 3D PCB fails by components misalignment

5 REPLIES 5
SOLVED
Reply
Message 1 of 6
ThomasWpunkt
368 Views, 5 Replies

After Update to 2.0.15775 transfer 2D PCB to 3D PCB fails by components misalignment

After I upgraded to version 2.0.15775 yesterday, there are severe errors when transferring the 2D PCB design to the 3D PCB. Components are displayed completely wrong in size and orientation in space.

Here is the view before the update:



befor updatebefor update

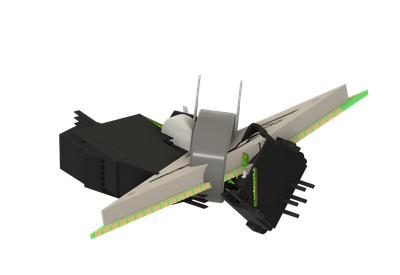

This is the result after the update:



after updateafter update


I have already tried the "Fast" setting. This does not lead to any improvement.



Does anyone has seen similar behavior and if so, is there is a workaround?



Thx.



Fusion 360 2.0.15775 x86_64
Aktiver Plan: Abonnement
Windows 10 Home 22H2 (22621.1413)

Labels (3)
5 REPLIES 5
Message 2 of 6

Hi @ThomasWpunkt ,



Since the update have you made any changes to the board? If nothing has changed at all then try the workaround at this thread. If the workaround works then that means something went wrong with our graphics improvements.



Would you be willing to privately share the files? There's a chance our developers may ask for it.



https://forums.autodesk.com/t5/fusion-360-electronics/workarounds-in-case-any-graphic-issue-about-fu...



Let me know if there's anything else I can do for you.



Best Regards,



Jorge Garcia
​Product Support Specialist for Fusion 360 and EAGLE

Kudos are much appreciated if the information I have shared is helpful to you and/or others.

Did this resolve your issue? Please accept it "As a Solution" so others may benefit from it.
Message 3 of 6

Hi Jorge,
thank you very much for your answer.
When I open the last working design and do a transfer from 2D PCB to 3D PCB, only the last 3D design is reopened. So I have to save at least the design once to create a new version of the 3D PCB.
I then disabled GPU rendering and restarted the generation. There is no change. The 3D PCB is wrong again.
I would share my design in a private conversation with the development team.
Best regards
Thomas



Message 4 of 6

Hi @ThomasWpunkt ,


I hope you're doing well. I'll DM you the developer emails so that you can add them to your hub and give them access to the files for review.



Best Regards,



Jorge Garcia
​Product Support Specialist for Fusion 360 and EAGLE

Kudos are much appreciated if the information I have shared is helpful to you and/or others.

Did this resolve your issue? Please accept it "As a Solution" so others may benefit from it.
Message 5 of 6
ThomasWpunkt
in reply to: ThomasWpunkt

To all forum readers,
the problem I described was investigated by Fusion360 developers and solved with the following result.
It is worth mentioning that the problem occurred when I used parts on libraries that I created via Eagle and then saved on library.io. After updating to Fusion360 version 2.0.15775, the error was produced after inserting such parts into a new design as well as when calling an existing design during transfer from 2D board to 3D board.
The solution to the problem is:
Go File > View > Show Text commands. In the window that pops up enter the following command. PCB.clearCache and then generate new pcb3d again.
After that the design was displayed correctly again.
Best regards

Message 6 of 6

Hi @ThomasWpunkt,



Hope all is well.

Good news that today we have an update about Fusion 360 version 2.0.16007 which has a fix about the issue you reported.

Could you please upgrade to latest to have a try? It should work for you now without any extra steps.



Thank you very much for your reporting and so sorry for any inconvienence.

Best regards,

Helen





Helen Chen
Principle QA for Fusion 360 Electronics
