Adding a PCB module to PCB

3 REPLIES 3
SOLVED
Reply
Message 1 of 4
CaptainMJ
447 Views, 3 Replies

Adding a PCB module to PCB

Hi! I recently decided to use the Microchip "PIC32MZ W1 -  WFI32E01" in my design, this is a mini PCB with MCU and WiFi, however as I drag this component on to my PCB I realize it is not possible to do so. I'm guessing as it is in itself a PCB some special action is required. Are you able to advise on that?



I added a screenshot to show what i am trying to do.



Many Thanks,

Marcus

Best Regards,
Marcus
Labels (1)
  • PCB
3 REPLIES 3
Message 2 of 4
panpan_fan
in reply to: CaptainMJ

Hi @CaptainMJ

I hope you are doing well!

For your question, I think it may be related to Push and Shove Feature.

You can change the mode to Ignore Violators in the navigation bar.

Screen Shot 2021-01-08 at 6.47.59 PM.png

And for information about Push and Shove, you can have a look at this video https://www.youtube.com/watch?v=W4wkUCD9HSs&list=PLmA_xUT-8UlI0k9YsKK23onh_0VV2_DP5&index=28

Hope it can solve your problem, please have a try, thanks!



Regards,

Panpan Fan

Message 3 of 4
jroddisRT8HL
in reply to: CaptainMJ

Create a new device for the module in your library.



Footprint -> Footprint of the module.

Package -> .step of the module, making sure it is above PCB height.

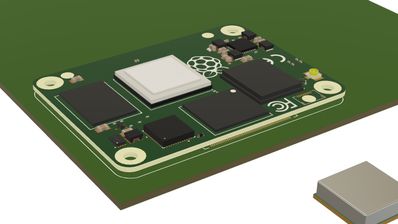

I did this with a Pi CM4 and it works quite well:



Screenshot 2021-01-08 140037.jpg



Screenshot 2021-01-08 140828.jpg



Is this what you mean?

Message 4 of 4
CaptainMJ
in reply to: jroddisRT8HL

@panpan_fan , @jroddisRT8HL  Many thanks for your suggestions, the both work great, much appreciated!



Best Regards,
Marcus
