Why does this area leak?

lemelman
Collaborator
Collaborator

I have a simple sketch - basically a rectangle with a circle tangent to two sides. The circle effectively divides the rectangle into three areas. See attached screenshots.

I want to select areas 1 & 2 in order to delete them. I can select area 2 OK, but when I select area 1 it includes area  3 and the the circle. Why can't I select area 1 alone? I've tried adding the F3D but I get an error message saying 'Sorry, unable to complete the action you requested.'

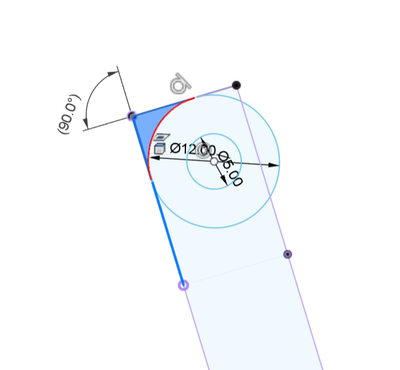

3 areas.jpg




Good Fill.jpg

Bad Fill.jpg

0 Likes
Accepted solutions (4)
195 Views
4 Replies
Replies (4)
Message 2 of 5

wersy
Mentor
Mentor
Accepted solution

There are several lines on top of each other.

Just delete them.






Message 3 of 5

kacper.suchomski
Mentor
Mentor
Accepted solution

Hi

Look at this:


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


0 Likes
Message 4 of 5

lemelman
Collaborator
Collaborator
Accepted solution

I apologise fore my delayed response, I have been unable to use my system for several days. Thank you for identifying my error and showing how to fix it. It was most mystifying.

0 Likes
Message 5 of 5

wersy
Mentor
Mentor
Accepted solution

So if you have no further questions please mark it as solved.
