Wankel Rotary Engine

[Anonymous]

I'm looking for the combustions chamber and rotary chamber design/data for the subject engine.  Can anyone help me?

Thanks very much.

[AlexPetak_Autodesk]

Hello,

I found this model https://grabcad.com/library/rotary-engine

1. I uploaded the RE.igs to my testproject.
2. Then in right click menu I clicked Create fusion design.

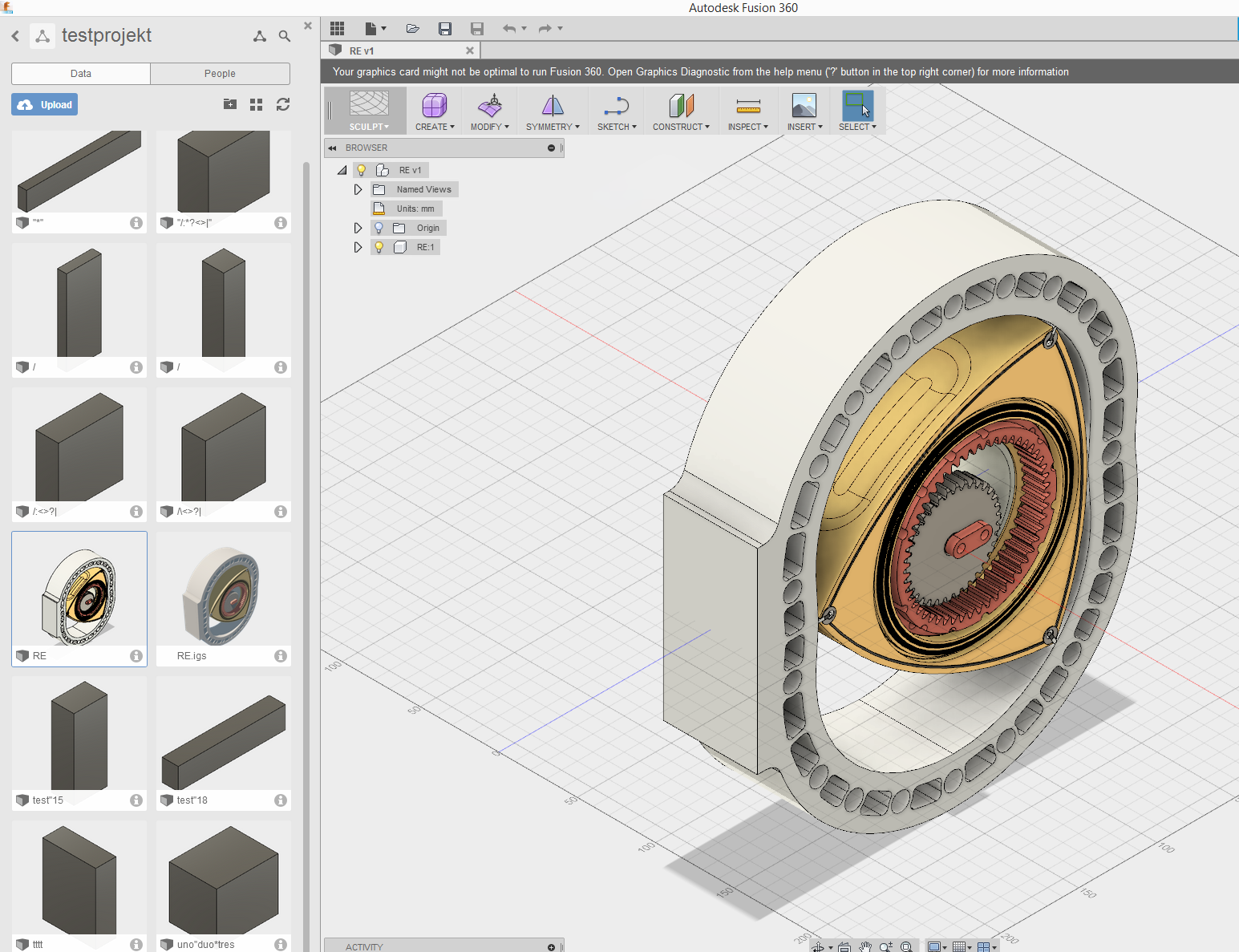

3. And I have a Wankel model in Fusion.

Thanks to awesome work of the original author of the model.

Regards Alex

[Anonymous]

Thank you, Alex.  This is exactly what I wanted.  I appreciate your efforts.

Best regards,  tamtam
