Sweep

spano.dom
Advocate
Advocate

Hi, in sketch 32 and 33 I am trying to use the sweep command to make a cut profile but keep on getting the error a region of the path is parallel with the swept profile. Any workarounds with this to get it to cut the profile?

0 Likes
Accepted solutions (1)
744 Views
7 Replies
Replies (7)
Message 2 of 8

laughingcreek
Mentor
Mentor

which parts of the sketches are you using as path and profile?

0 Likes
Message 3 of 8

spano.dom
Advocate
Advocate

the profile and path took a couple of screenshots

0 Likes
Message 4 of 8

TrippyLighting
Consultant
Consultant

@spano.dom wrote:

the profile and path took a couple of screenshots


.. which you forgot to share?


EESignature

0 Likes
Message 5 of 8

spano.dom
Advocate
Advocate

pics should be in the post now re edited and put the screenshots in guess they didnt upload the first time

0 Likes
Message 6 of 8

laughingcreek
Mentor
Mentor

in this case, the error message is exactly correct.  at the beginning and end of your path the arcs are tangent to the plane of the profile.  even if the sweep had worked, the results wouldn't have been what you expected.

in most cases for sweep, it's best ensure the profile is normal to the path.  in your case you may need to use a loft.

Message 7 of 8

TrippyLighting
Consultant
Consultant
Accepted solution

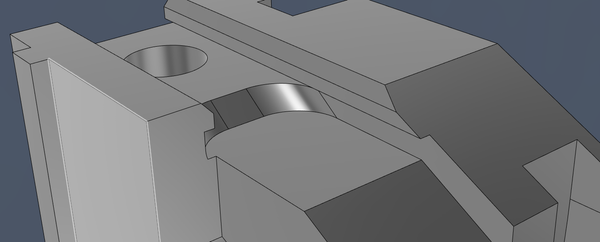

The warning message is correct. The profile cannot be tangent to  the path. This can be done easily with an extrude and sweep using and edge created by the extrusion.




Model is attached.


EESignature

0 Likes
Message 8 of 8

spano.dom
Advocate
Advocate

Thanks got it saw how you did it and works out to be the same as in solidworks
