Svg on a cylinder

[Anonymous]

Hi, I need to add an Svg file on a Cylinder. How I can do it?

Many Thanks

[Beyondforce]

Hi @Anonymous,

Start a sketch on the face/plan that you want and from the Insert menu choose insert SVG.

Cheers / Ben
---------------------------------------------------------------------------------------------------------------------------
Did you find this reply helpful ? If so please use the Accept as Solution or Kudos button below.

Check out my YouTube channel: Fusion 360: NewbiesPlus

[PhilProcarioJr]

@Anonymous

Do you want to wrap it around the cylinder or project it onto the cylinder?

Projecting it will distort it, but we can show you how to do that. There is no tool for wrapping it around the cylinder.

[Anonymous]

Hi,

I would like to wrap it around the cylinder and debossed it around 6 mm, to impress the imagine on the cylinder.

Hope now is clearer

Thanks

[Beyondforce]

Could you please attach the svg file. It will be easier to show, than to explain with text.

[PhilProcarioJr]

@Anonymous

You can do this but the svg will distort as it gets farther away from center. Right now there is no wrap feature in Fusion.

[Anonymous]

I'm sorry but I can't attached the file for privacy, because it is a project for my company;

The SVG file is a draw, made by Illustrator.

Thank you

[Beyondforce]

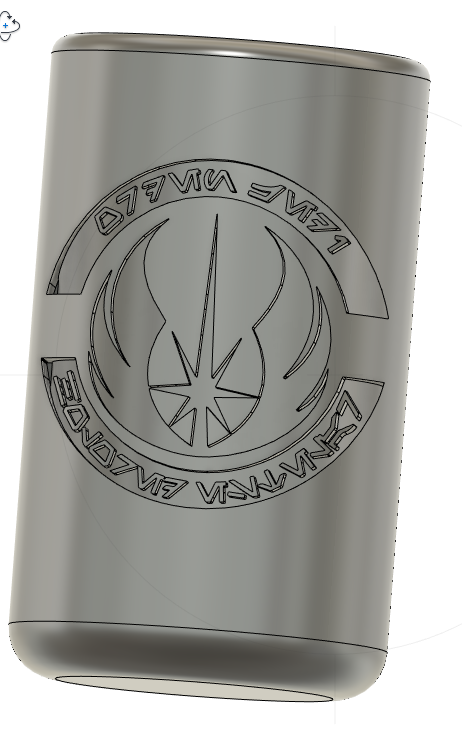

Here you go, let me know if you have questions:

[Bewarewolf]

ANYTHING Possible!
