Smooth Transition in a pipe

[jdpreynolds]

Hello

I am trying to get a smooth transition into the end arc of a pipe sweep as per the attached drawing (area circled in blue)  I am unable to use a fillet  what's the best way to approach this.

many thanks

Julian

[HughesTooling]

Here's one way.

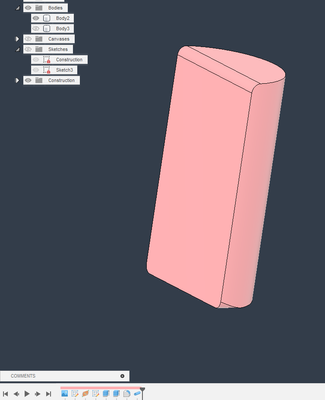

Create a body with an edge that follows the centre line of the pipe.

Then add the pipe. See attached design.

[wersy]

[user015M86Y · Accepted solution]

@jdpreynolds,

Attached is a variation of @HughesTooling and @wersy using a Fit Point Spline for the perpendicular transition

[jdpreynolds]

thanks for you reply's the finished result looks great.  I will give this a try
